AG3M

SOLES

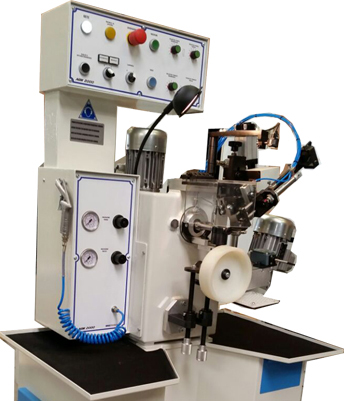

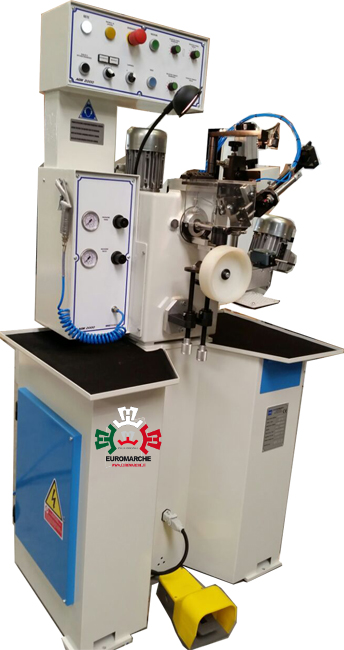

WELT APPLYING MACHINE (SEMI-AUTOMATIC): AG3M

FUNCTIONAL DESCRIPTION

To work soles with and without applied heel and wedges with high thickness difference (h. 50-60 mm). The sole must be conducted by the operator in correspondence of the top. Semi-automatic cutting and automatic speed slowdown on the tip and the heel. Oscillating sole transport roller, to apply the welt even on soles with heel. Automatic welt replacing. Automatic speed change in correspondence of the side/ top, both of the sole and the welt.

TECHNICAL DATA

Net weight: kg 240

Pneumatic pressure: 5 bar

Dimensions: mm 900 x 550 x 1680 h
