GLUING MACHINE: A/20C

FUNCTIONAL DESCRIPTION

The Gluing machine mod. A/20C has been designed and realized to meet the counters gluing requirements in the shoes factories montage line. Three support hooks, where the counters are put and which take position step by step in three stations, compose the machine.

In the first station, the operator effects the operation of loading and unloading of the counters directly and closing the safety guards starts the work sequence.

In the second station, there is the dipping of the counters in the glue bath, their drawing up and centrifugation. The dipping and centrifugation times are set out by the operator in order to obtain the desired result.

In the third station, a fan provides to a perfect counters drying.

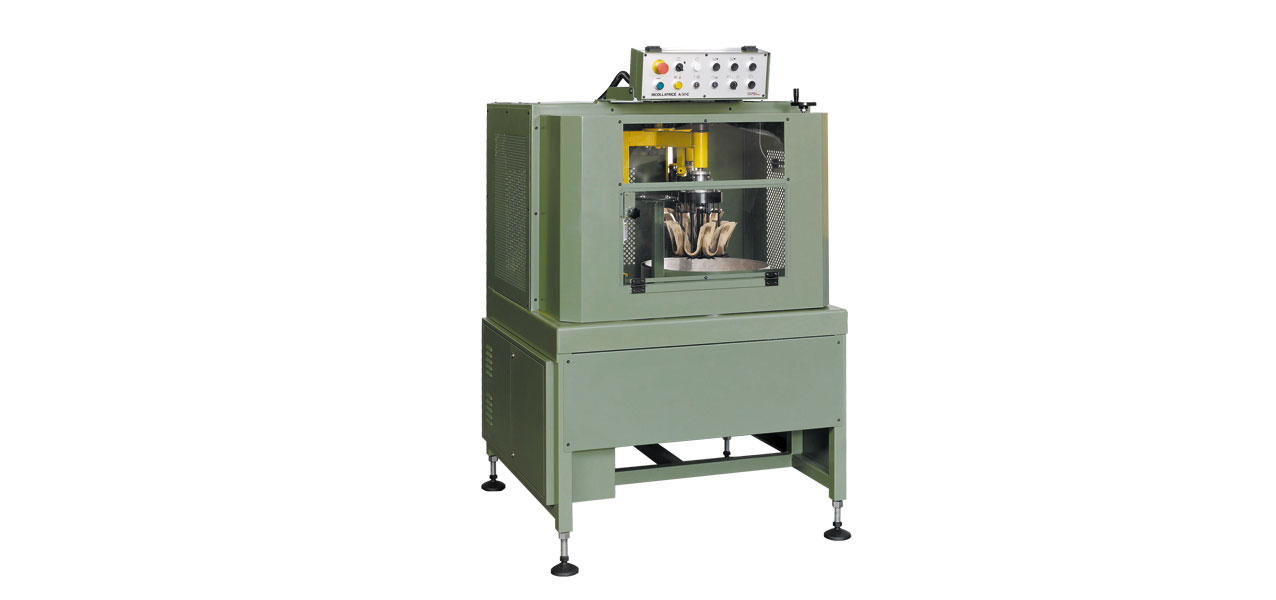

As you can see in the photo, the machine is very simple, specially concerning the support hooks groups that are without pincers. Their cleaning needs only few minutes every week, as the machine isn’t exposed to gets dirty of glue as it remains at 100% in the glue tank. The result obtained with this machine is the best for a perfect gluing and humidification of the counters making them more flexible and adaptable to the shoes shape.

TECHNICAL DATA

Dimensions: mm 1100 x 1150 x 1750 h

Supplied voltage: 230/400 V

Absorbed power: kW 2,5

Max. production (pairs/hour): 450 pairs

Net weight: kg 470
