Comec ST18 (automatica)

INSOLES

SKIVING MACHINE (SEMI-AUTOMATIC): ST18

FUNCTIONAL DESCRIPTION

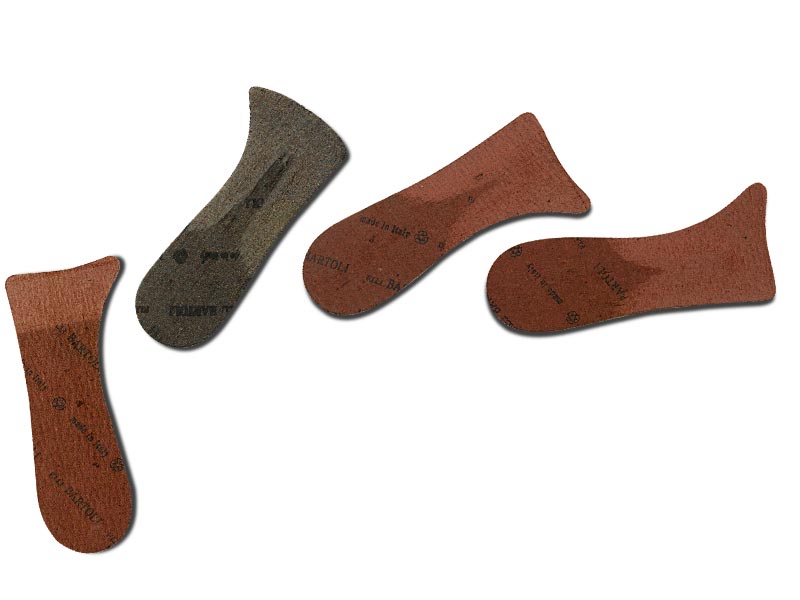

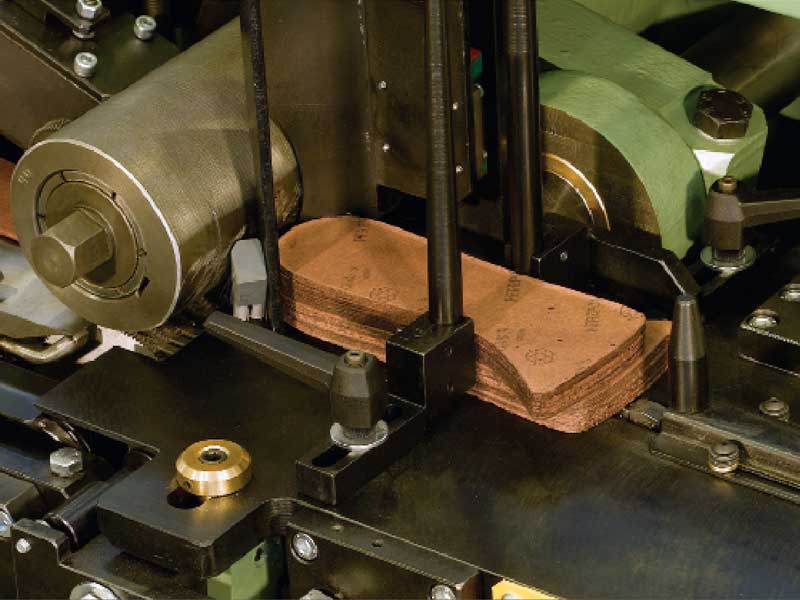

The SKIVING MACHINE mod. ST/18 is a machine for the automatic skiving of the heel seat linings either fiber boards or other material. Its high degree of electronic automation allows that the operator adjust the machine very fast and in full safety as the adjustments are made by touch-screen. The machine assures a complete autonomy of work thanks to its system of control. It is also equipped by a system of memorization dates for an easier filing recipes work. The machine takes the heel seat linings from a feeding table and effects a perfect skiving. After these operations the heel seat linings are counted and laid down on a belt. The skiving is made through rollers previously prepared; these are joined to the machine by means of a simple expanding device. The same skiving roll can be used to skive heal-seat linings of various thickness from 18/10 till a maximum of 30/10. The loading table is in connection with a chain pusher by continuous cycle. This allows to make easier the adjustments operation for the entry of the material. The data will be stored and filed with the name of the worked article and will be available for future processing. The silence, the safety, the energetic saving, the immediate start up phase, the less use of skiving rolls, the less waste of material to adjust the machine and the higher productivity, are the special features of this machine. The speed of the machine is set in the touch screen. The machine is made according to CE instructions.

TECHNICAL DATA

Dimensions: mm 1070 x 1370 x 1520 h

Maximum hourly pieces: 10.800

Supplied Voltage: 230/400 V

Absorbed Power: 3 Kw

Skiving roll diameter: 96 mm

Skiving roll width: 140 mm

Net weight: 525 kg
