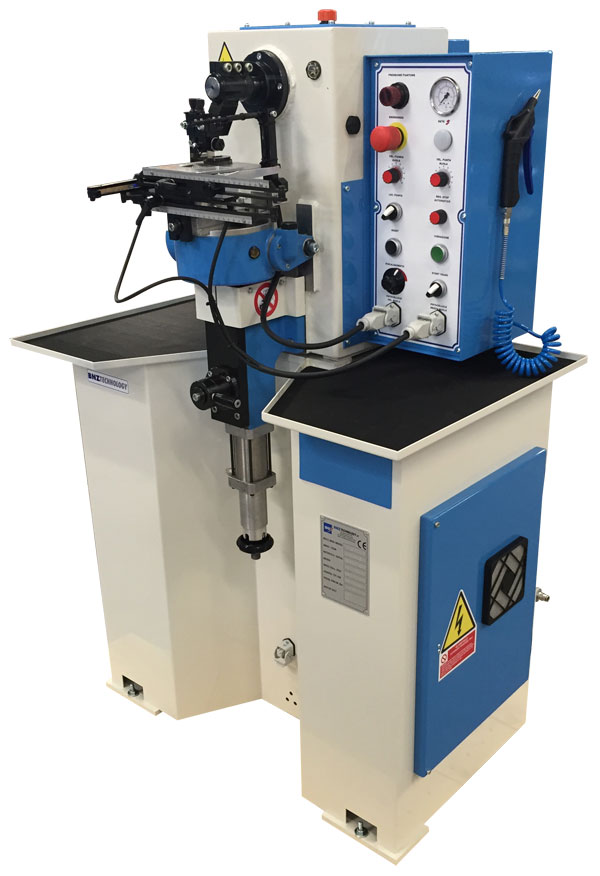

H3000

SOLES

GROOVING – CHANNELING – WHEEL – ORNAMENT: H3000

FUNCTIONAL DESCRIPTION

Designed to work on every type of soles, allowing either heavy processing such as grooving by a blade on man soles or decorations on the thinner and sharp-tip woman soles. This is possible by changing the conveyor group in order to fit the right kind of sole to process. Furthermore, the height of the rear conveyors is adjustable to allow the machine to adapt itself to different sole thicknesses. It’s also possible to adjust the speed by means of an electronic control in order to slow down just around the tip, or speed up on the sides. The machine may be equipped with many accessories and devices which make it really useful and versatile.

H3000B

nr. 1 groove blade or trim head (S117 o H00A)

nr. 1 conveyor group available in the following diameters: 20 – 32 – 44 mm

H3000

nr. 1 Groove head S117

nr. 1 trim head H00A

nr. 1 conveyor group available in the following diameters : 20 – 32 – 44 mm

nr. 1 automatic stop device , half-sole processing ALP

H 3000 SPECIAL

nr. 1 Groove head S117

nr. 1 trim head H00A

nr. 1 conveyor group diameter: 20mm

nr. 1 conveyor group diameter : 32mm

nr. 1 conveyor group diameter : 44mm

nr. 1 automatic stop device , half-sole processing ALP

nr. 1 device for marking decorating stars before or after the processing

nr. 1 coloured ribbon marking device DMO – M Each model is also available (by an additional charge) with a device called TCR which allows to make the groove processing on rubber materials.

TECHNICAL DATA

Dimensions: mm 900 x 900 x 1650 h

Net weight: kg 260

Pneumatic pressure: 3.5 bar

Lubrication: Transport reduction gear and vibrating head in oil bath
