INSOLEMAX 12

INSOLES

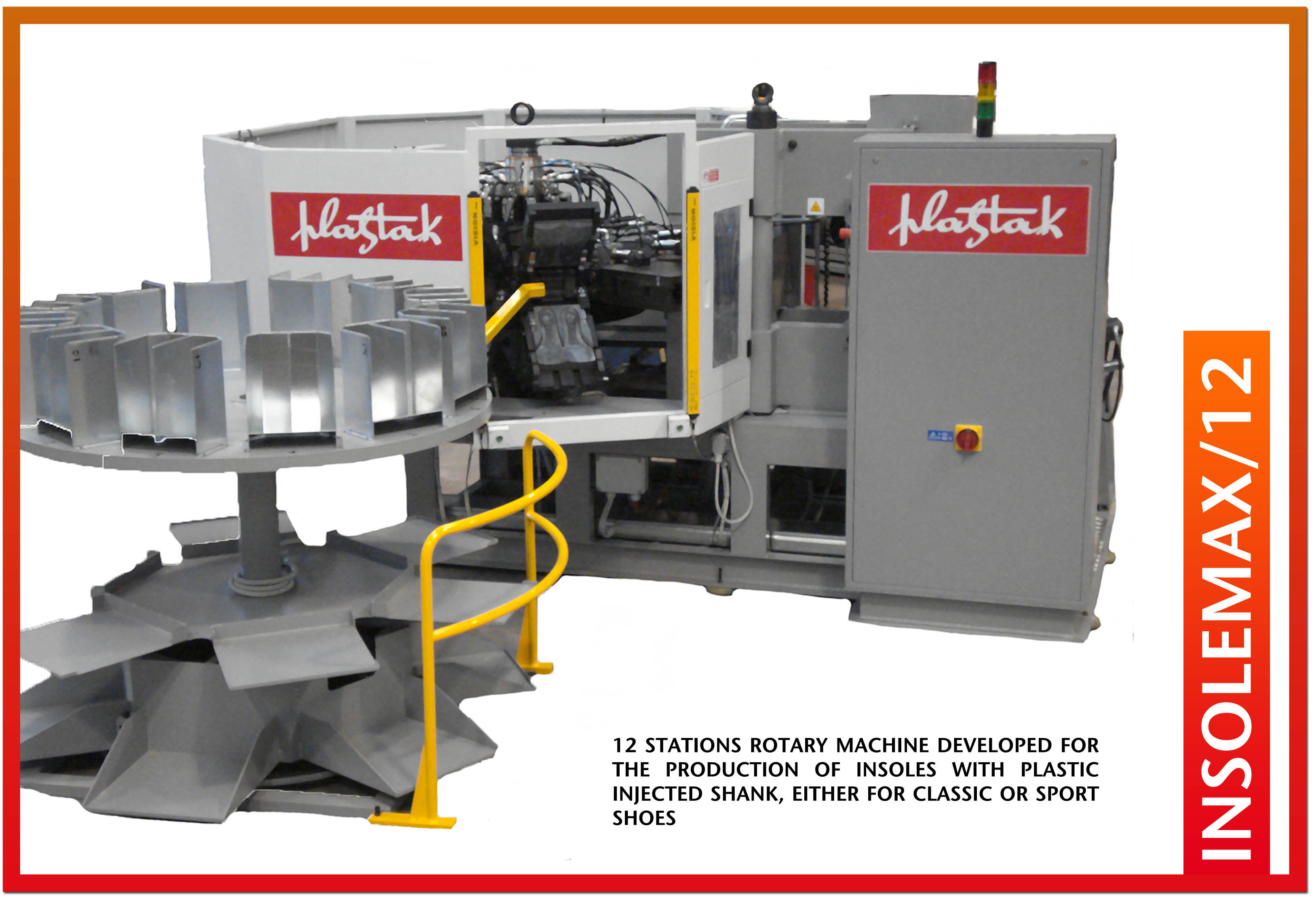

12 STATIONS ROTARY MACHINE FOR INSOLES WITH PLASTIC INJECTED SHANK: INSOLEMAX 12

FUNCTIONAL DESCRIPTION

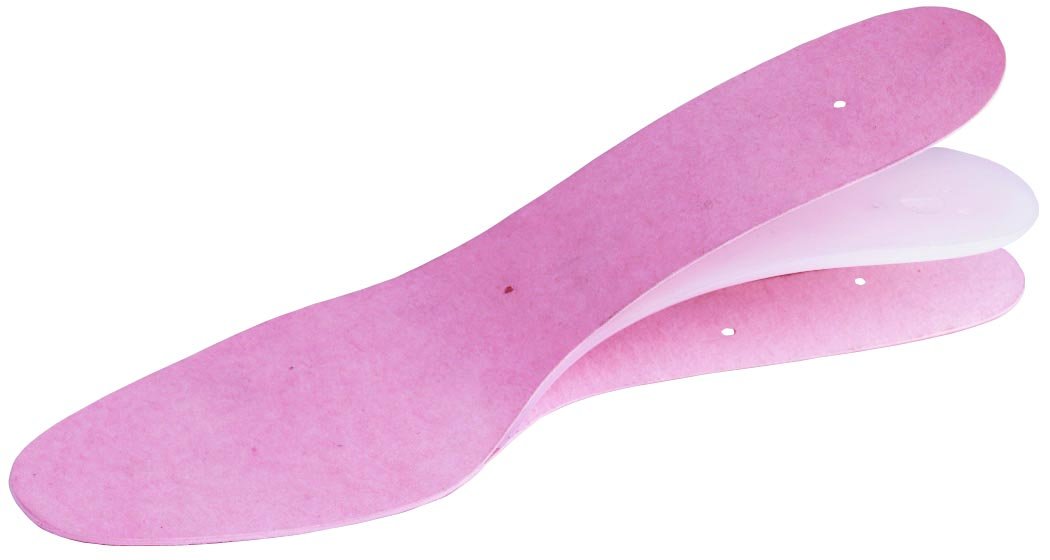

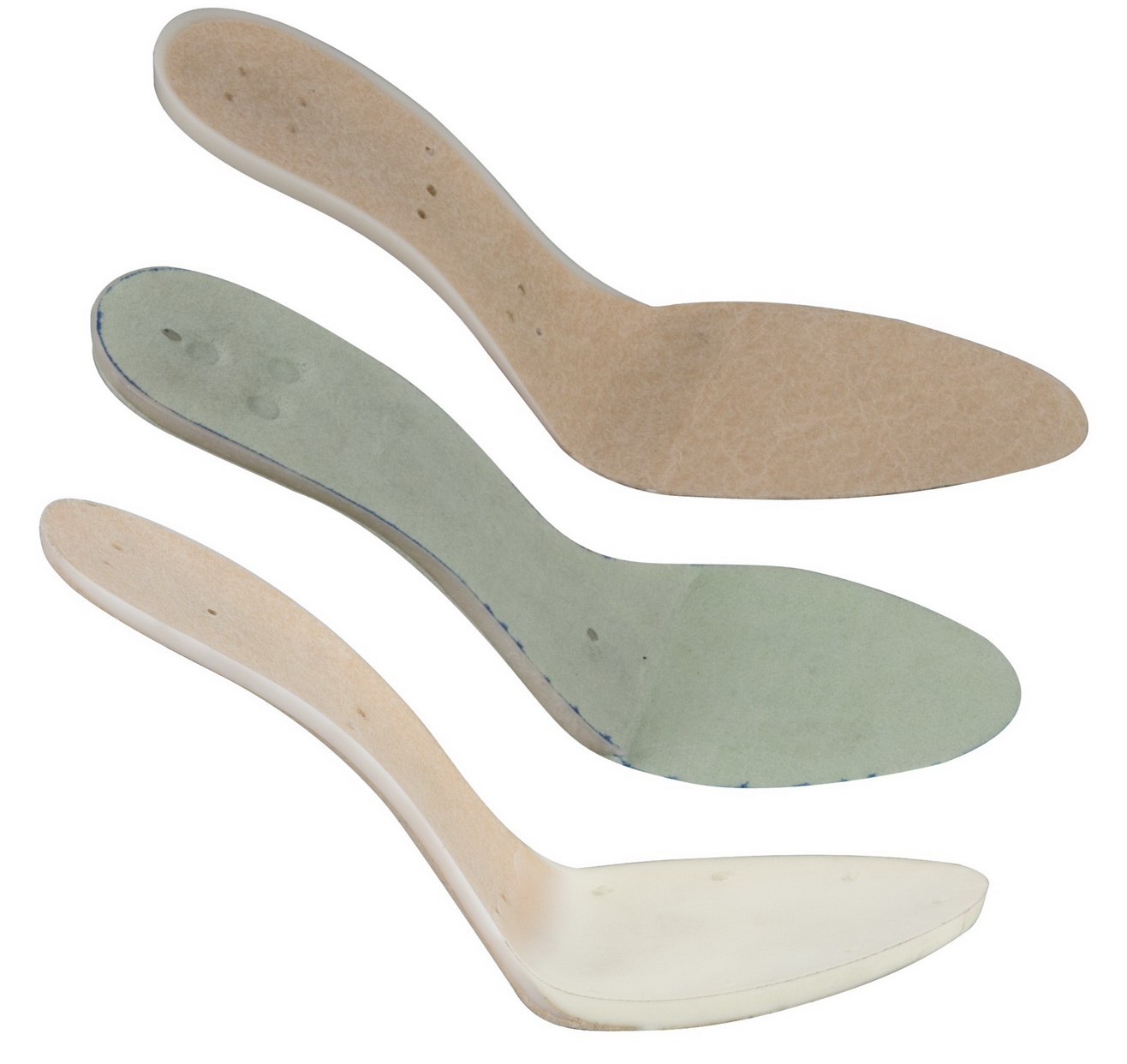

12 stations rotary machine developed for the production of insoles with plastic injected shank, either for classic or sport shoes.

TECHNICAL DATA

Screw diameter: mm 42…60

Screw ratio: L/D 24

Effective volume of injection: 277…565

Injection capacity: 198

Injection stroke: mm 250

Plasticization capacity: kg/h 158

Press clamping force: KN 1000

Extraction force: KN 4

Press piston stroke: mm 18

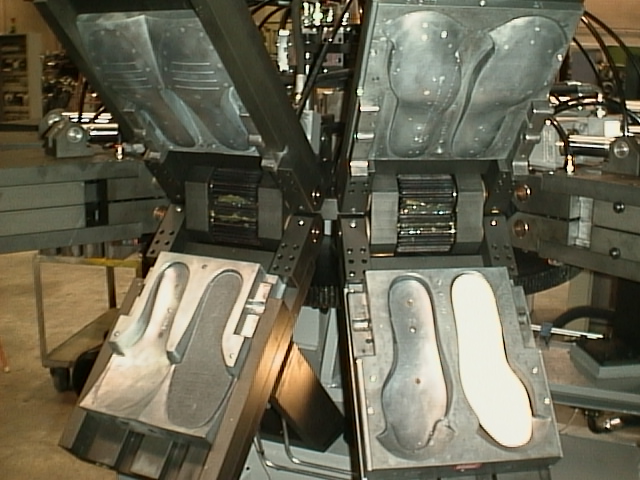

Max moulds dimensions: mm 270 x 380

Screw motor: kW 7,3

Main pump motor: kW 22

Net weight: kg 5110

Dimensions: mm 3500 x 2350 x 1970 h
