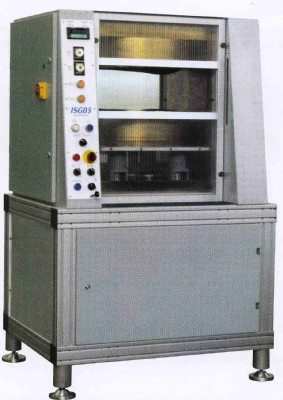

PRESSING MACHINE WITHOUT TEMPLATES: ISG05

FUNCTIONAL DESCRIPTION

This universal pressing system provides solutions for all types of footwear. The principle of operation is double pressing working from above and below through double tub filled with fluid, selfshaping without using counterprofile. Therefore the advantages are a constant pressure on all the surface points independently from drawing and shapes, without templates. The machine is easy to use and the settings are only about the pressure of the pressing operation and pressing time, it has a high productivity and it can be inserted in automatic cycle. The advantages of the ISG05 system are truly exceptional:

- pressure: 35 kg/cm² distributed over the entire surface of the shoe,

- no need for adjustments, except for the pressure settings

- no need for a reference lasting jack

- no present position for the shoe in the insertion phase, with maximum ergonomic comfort for the operator

- extremely fast machine cycle: 10 sec. are sufficient for a perfect pressing

- automatic operation (Single or Double Break)

- production: 1200 pairs/8 hours

- fluid employed: water

- the use of Level 4 safety photocells guarantees maximum safety and suitability to European Standards

The ISG05 system is suitable for men’s and women’s footwear, for classic, sports, trekking, free climbing, mountain, biking, football shoes and boots, as well as for all coupling operations for technical soles and various components.

TECHNICAL DATA

Net weight: kg 950

Volume: 1,3

Dimensions: mm 1000 x 800 x 1760 h
