JB610

SOLES

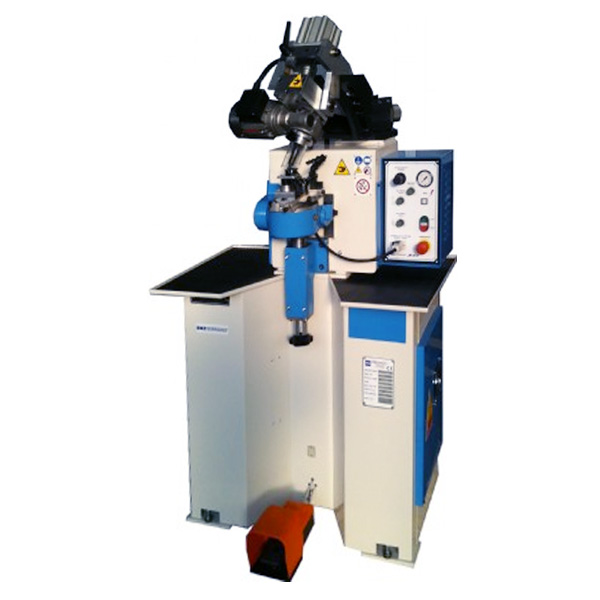

PRE-MOULDING MACHINE: JB610

FUNCTIONAL DESCRIPTION

This type of machine executes the Jourdan premoulding on the edge of Leather soles or synthetic material, through an universal shaped roll on all models of sole, without to prepare the moulds or template. The machine has an heating folding roll on the flashings part of the sole, to obtain an perfect premoulding. With JB 610 the premoulding will be more accentuated and it will make better the closing between the sole and the bottom of the shoe.

TECHNICAL DATA

Dimensions: mm 1000 x 1200 x 1450 h

Net weight: kg 185

Total absorption: kW 1.4

Pneumatic pressure: 6 bar

Power supply: 400 V 50 Hz
