RAP86M

INSOLES

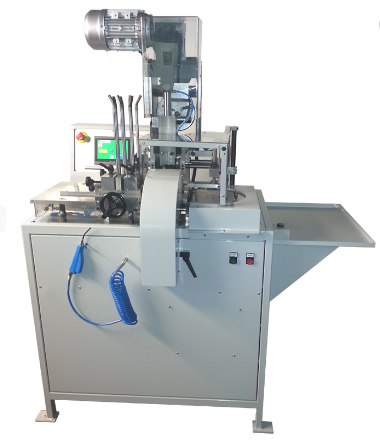

AUTOMATIC RIVETING MACHINE: RAP86M

FUNCTIONAL DESCRIPTION

Automatic machine to fix with rivet the shank to the heel. The automatic system allows machine to work with continuous cycle with a production of 1500 pairs/hour.

TECHNICAL DATA

Electrics power: Volt 400

Frequency: Hz 50

Named electrics: A 1

Number of phases: N 3

Installed power: kW 0,75

Heels inside loader with thickness 2mm : no.~ 180

Metal shanks inside loaders (heel mm 30): no. ~ 40

Hour production: Pairs no. 1500

Air consumption: Lt/min ~50

Suggested air pressure: Atm 7

Power supply: 400 V – 50 Hz three-phase

Dimensions: mm 900 x 1400 x 1600 h

Net weight: kg 300

Max diameter cup cutter Ø 180 mm

Standard equipment cutter Ø 140 mm
