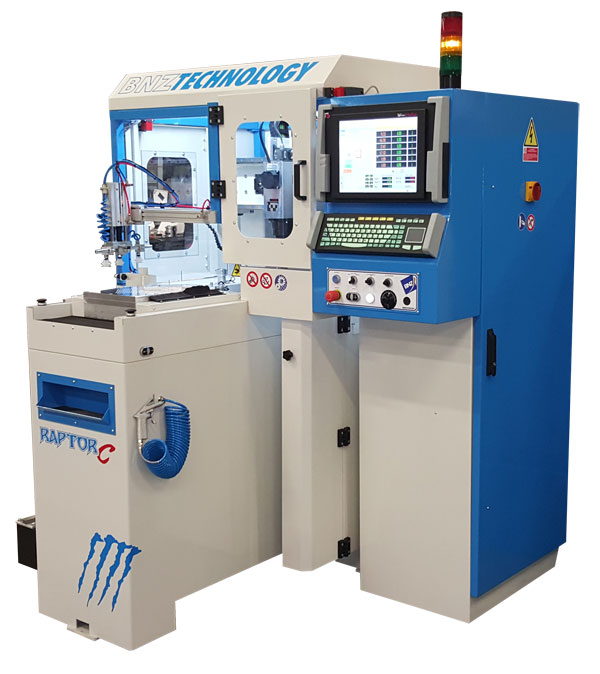

PANTOGRAPH: RAPTOR

FUNCTIONAL DESCRIPTION

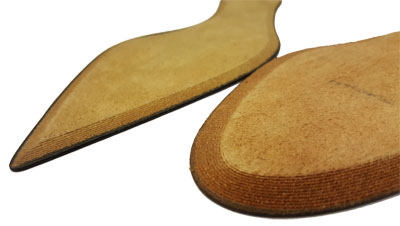

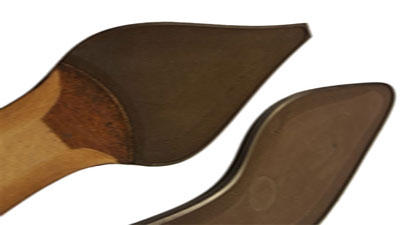

Pantograph with automatic loading and V centering system. Equipped with a vertical loader, where the sole is taken by suction cups and placed on the plane. The sole is centered by two V centers. After the centering, the sole is blocked by a high power vacuum pump and, if it’s needed, the centers get outside the plane to make easy the milling process (like Jordan). At the end of the processing, a proper device places the machined soles in a collector. The automatic loader/collector can be enabled or disabled by a switch, so the machine can be operated manually. Provided with two powerful spindles capable to work with large mills and a length correction probe. The main characteristic is being suitable for operations like engraving and decorations on the sole without standing by the machine.
Available in three versions:

RAPTOR: standard version equipped with two spindles

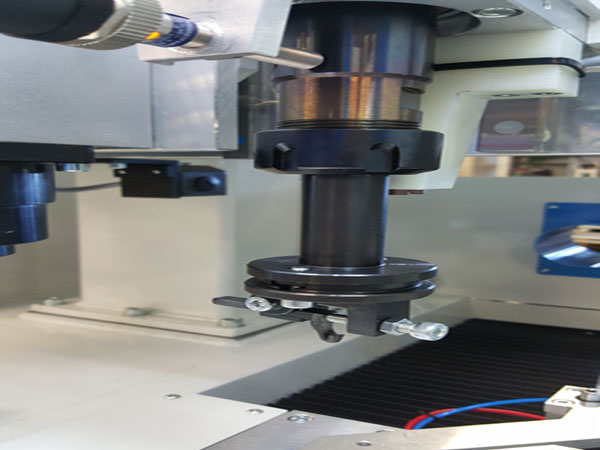

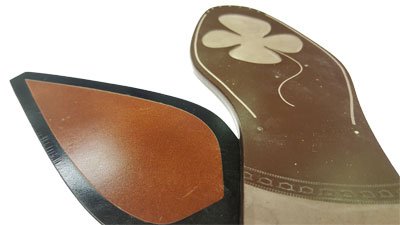

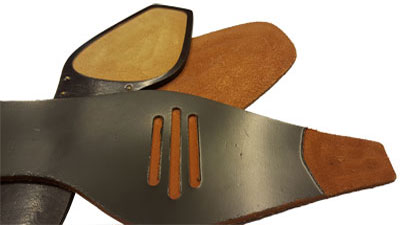

RAPTOR_C: two spindles as the Raptor with a device “C Axis” which allows to realize stitching grooves, decorations, plastic coating cutting on bicolor soles). The group is provided with an adjustable heating device in order to obtain a great result either on suede or synthetic material.

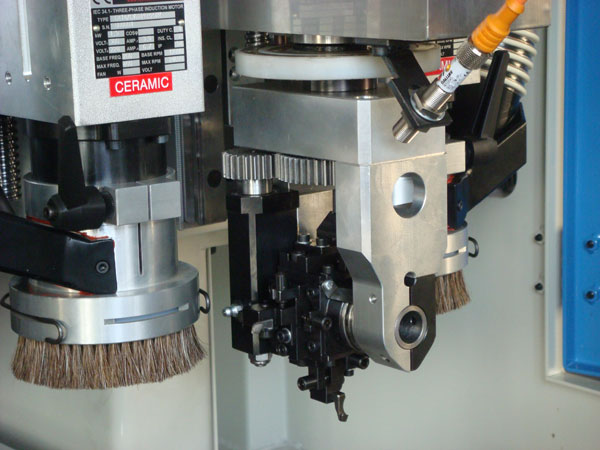

RAPTOR_C4: as Raptor C with the “C4 Axis” instead of the “C Axis”. Device which permits to realize four different processes on a single sole, being able to have on the same machine, for example, two cutting wheels and two groove blades with different dimensions.

TECHNICAL DATA

Dimensions: mm 1500 x 1100 x 1800 h

Net weight: kg 1500

Spindle power: kW 3,3
