PANTOGRAPH: SIMPLY FREE

FUNCTIONAL DESCRIPTION

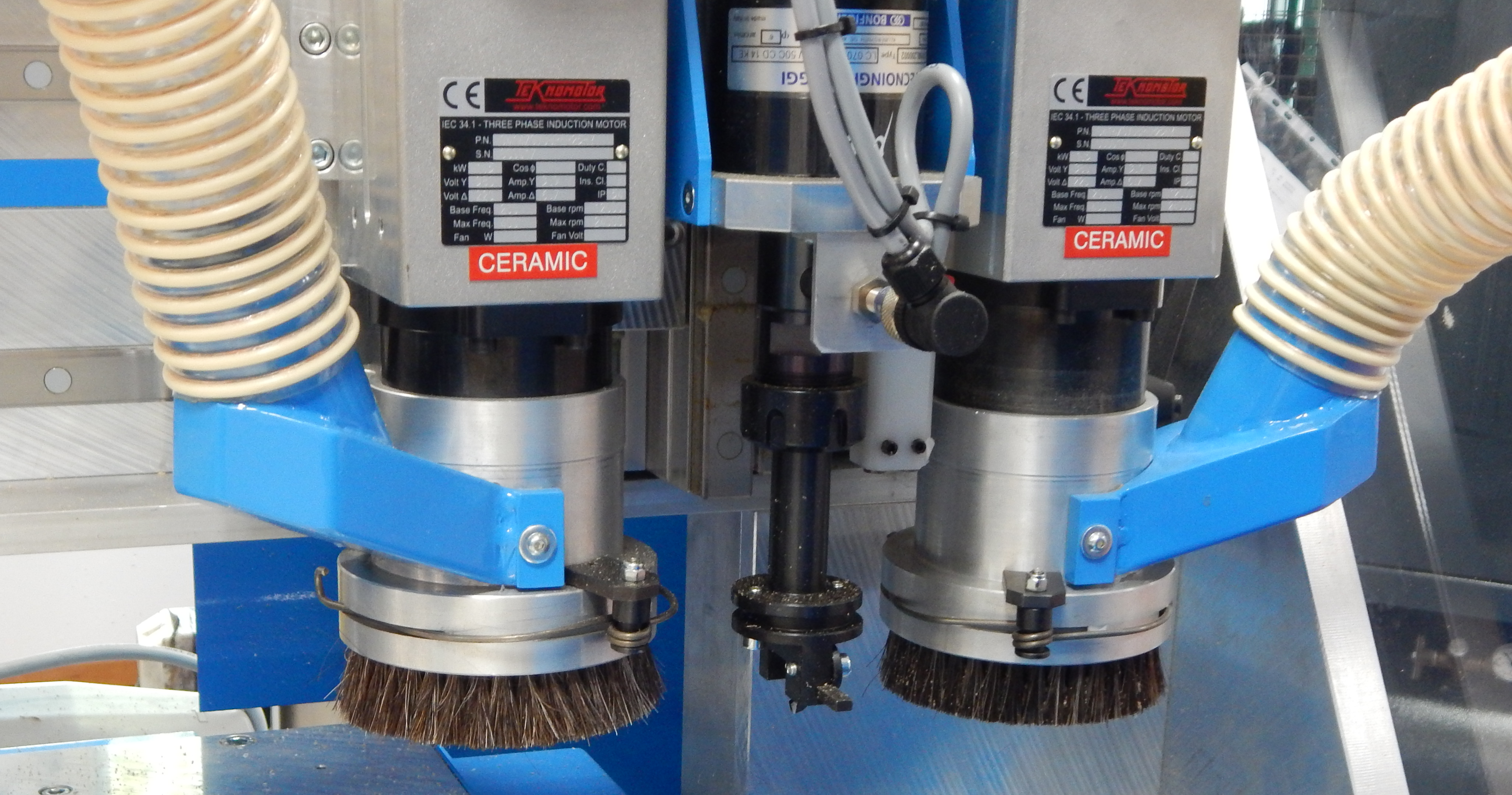

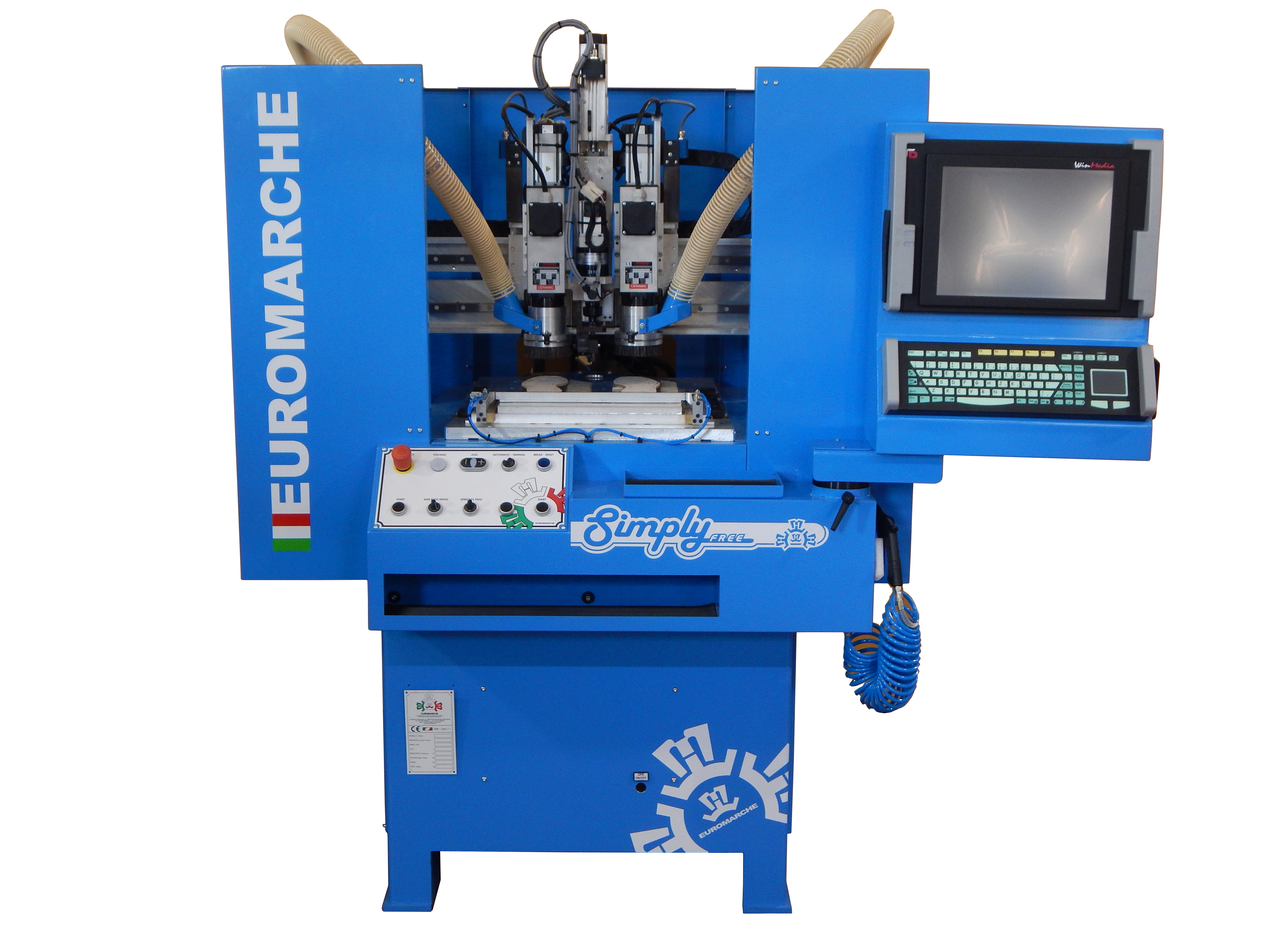

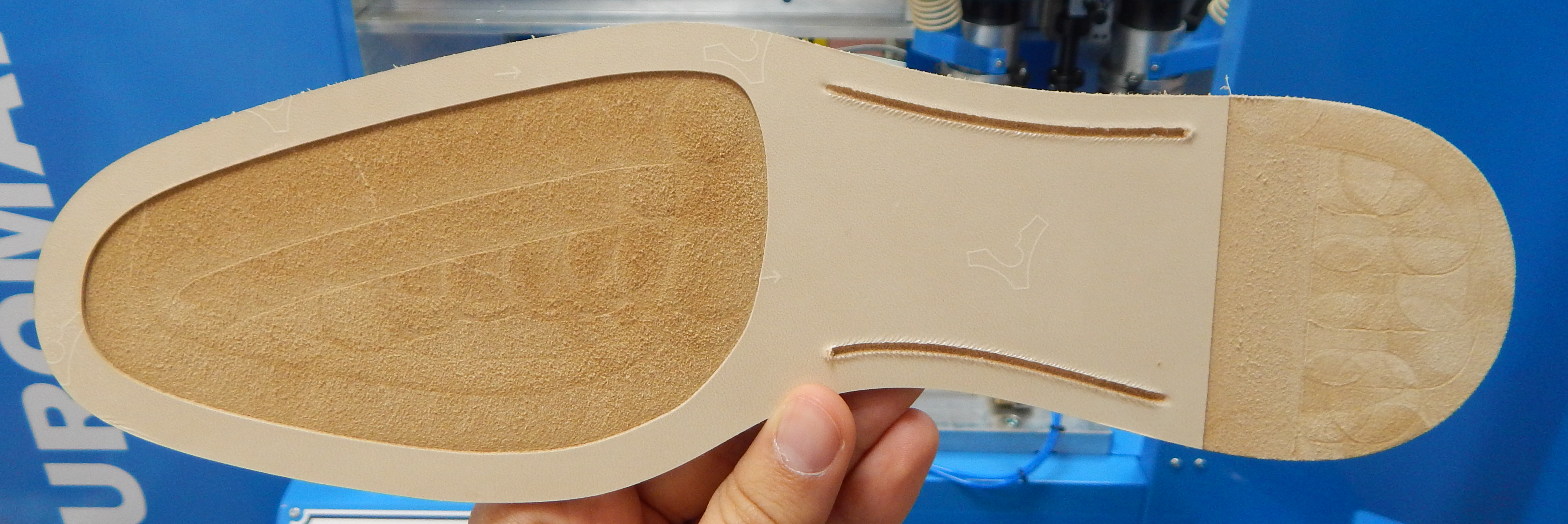

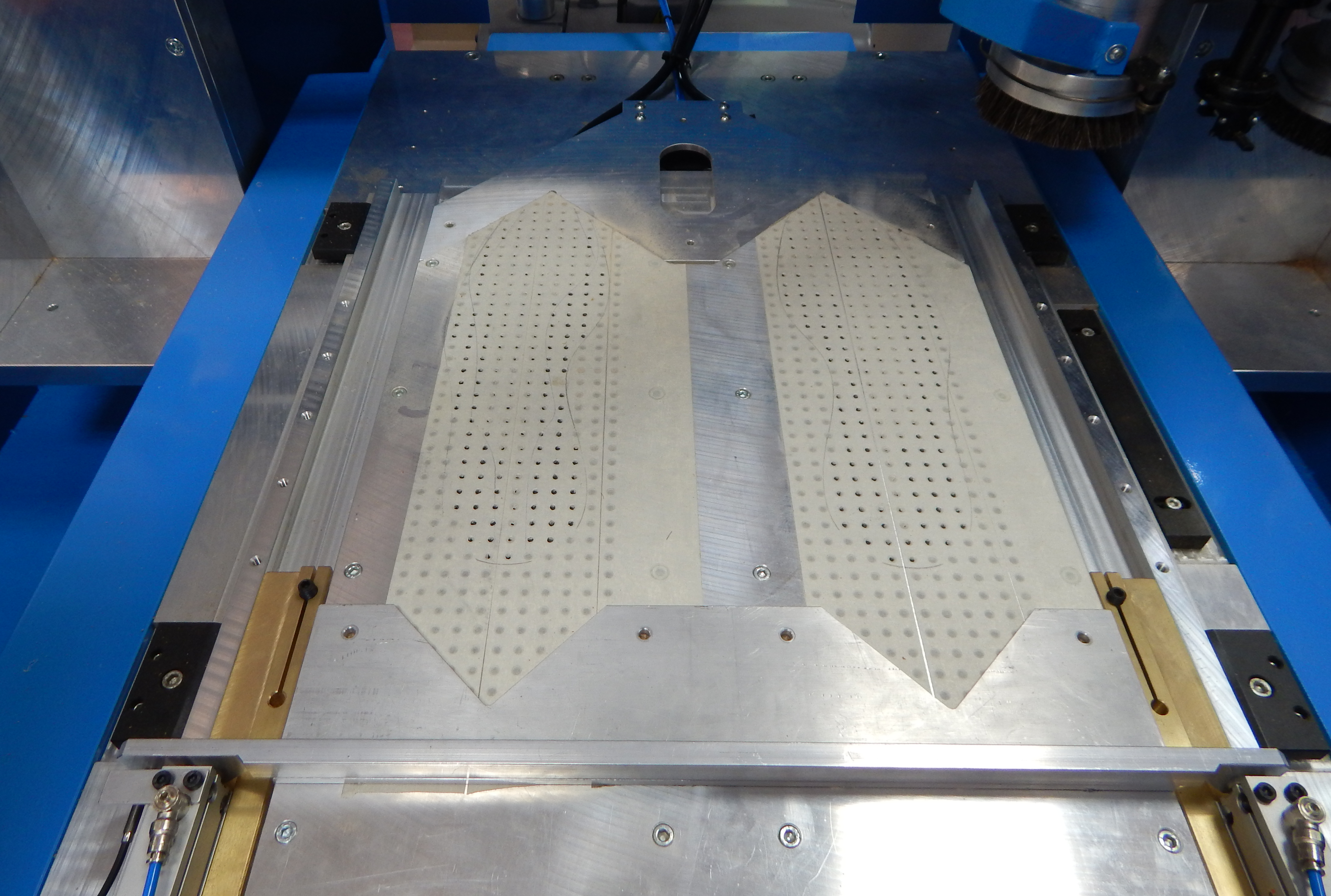

The pantograph Simply Free is a working bench with two spindles and automatic center squares with three functions, it has a working area with size 500 x 500 mm. The sole centering system is "double V" shape and the sole locking is carried out through a vacuum pump system. Simply Free is also equipped with heated C axis, allowing to execute grooves, stitch-marking, channels and other types of working.

TECHNICAL DATA

Net weight: kg 700

Dimensions: mm 1580 x 1820 x 1780 h
