SPEEDER

Pantograph double station with automatic loading. Equipped with 2 vertical loaders integrated in its structure, from which the sole is taken by suction cups and placed on the plane. The sole is centered by two center squares. After the centering, the sole is blocked by a high power vacuum pump, and if necessary, the center squares get outside the plane to facilitate the milling process (like Jourdan). At the end of the processing, a proper device places the worked soles in a collector. If it is necessary the automatic loading/ collector system can be disabled by a switch, and the operator can load the soles manually one at a time. Equipped with no. 2 high power spindles that enable to work with large diameter cutters and with automatic tool zero setting length. The great advantage of this model is to have high production because the working head is always engaged in the processing step, while an asynchronous loading and unloading system takes care of keeping the working areas always ready for the cycle.

Available in three versions:

- Speeder: standard model equipped with two spindles

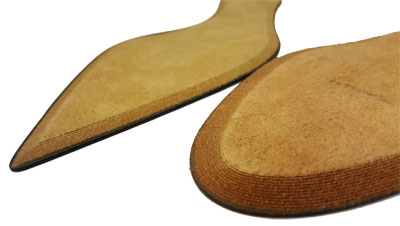

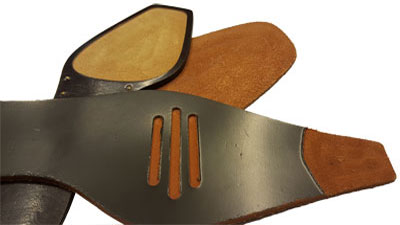

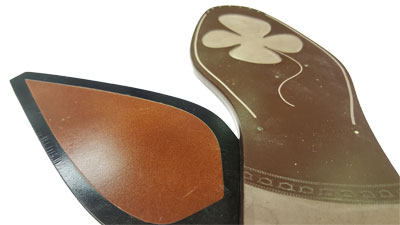

- Speeder_C: as mod. Speeder with extra device “C AXIS”, that allows to realize channels and stitching grooves, decorations, film cutting for soles with two colors, and so on. The kit is equipped with adjustable heating system, in order to obtain a certain result on leather and synthetic soles

-Speeder_C4: as mod. Speeder with extra device “C 4 AXIS”, which allows to realize 4 different workings on the same sole and to have always at disposal for example 2 wheels and 2 grooves with different sizes
