SV04

SOLES

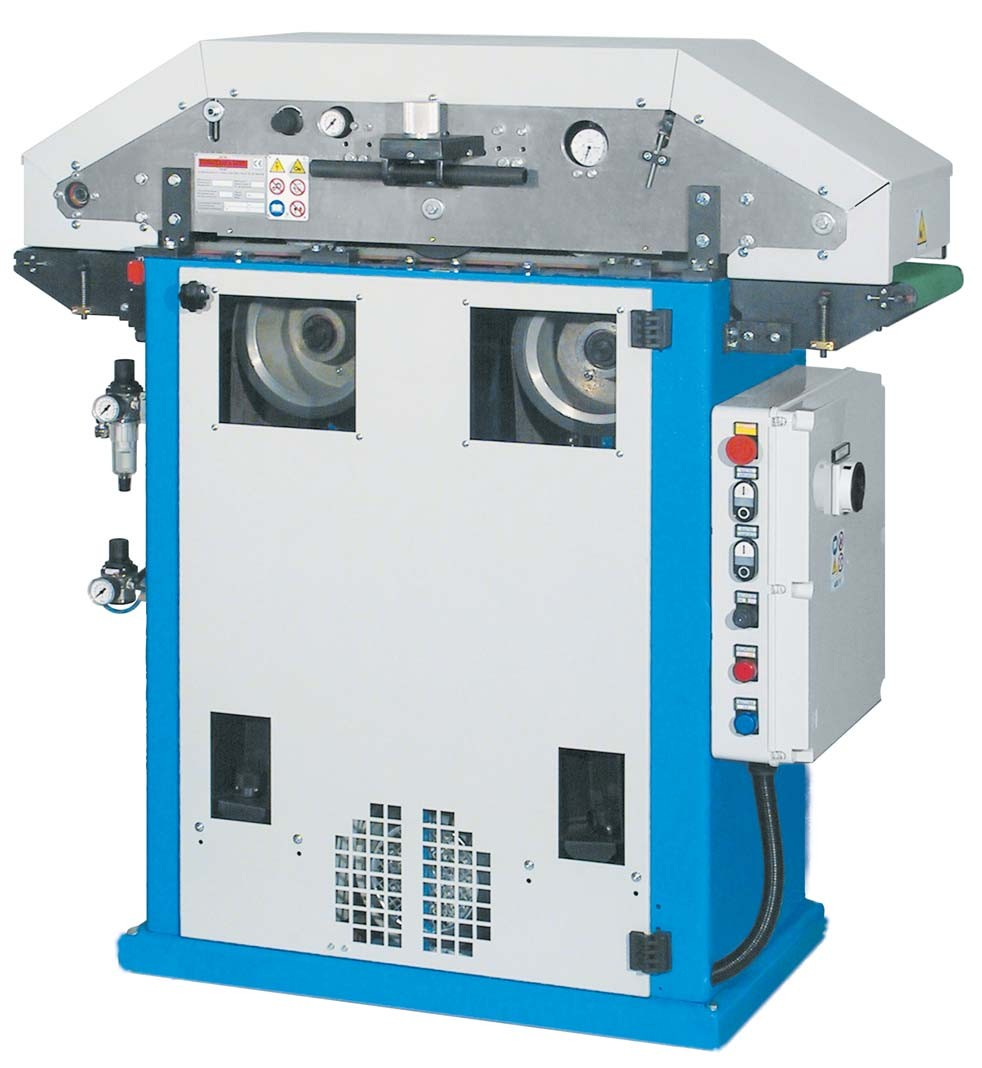

BUFFING MACHINE: SV04

FUNCTIONAL DESCRIPTION

This machine buffs the leather sole on the grain side. The single step buffing utilizes two abrasive cloth belts having different concentrations. This features allows two different types of consecutive sole buffing without intervention from the operator. This double buffing makes it possible to use diverse types of leather, including low quality goods. The finishing produced by this machine is always extremely regular and free of scoring under any conditions.  It is possible to install it on a line whit other machine.

TECHNICAL DATA

Net weight: kg 420

Production: 1500 pairs/ h

Installed power: kW 4.37

Power supply: 230 - 400 V 50 Hz three-phase

Pneumatic supply: 6 bar

Dimensions: mm 1300 x 600 x 1320 h
