T2E

SOLES

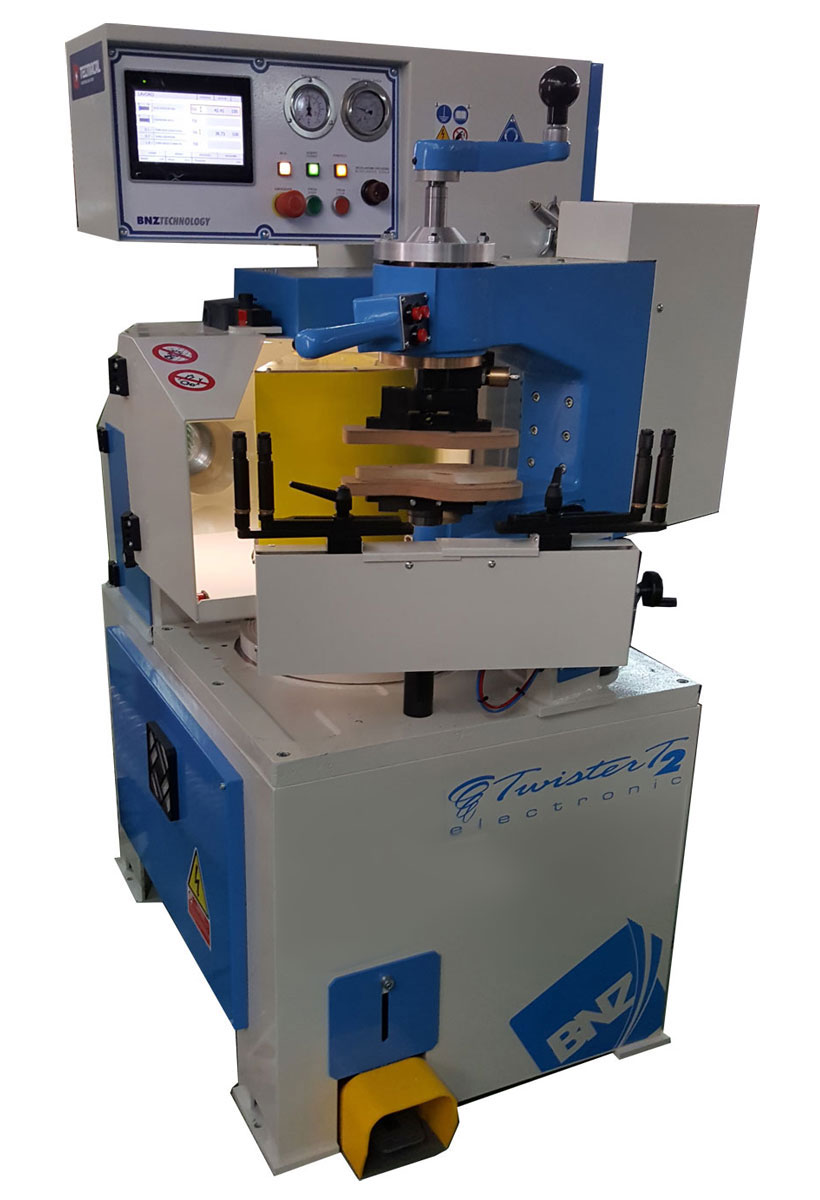

PRE-MILLING MACHINE WITH CONTROL PANEL: T2E

FUNCTIONAL DESCRIPTION

The T2 Electronics differs from the previous model T2 by means of the adjustable working height, by the touch screen control panel and by the possibility in making up to 4 profiles on the single sole. Therefore, the machine is equipped with two spindle shafts, it’s possible to install up to two mills on each. The profile sequence is set up using a computer embedded into the control panel. Due to the motorized C-arm, setting the working height is easy and fast. The sequence related to every sole can be archived and recalled in the future when it’s needed. The news introduced in the T2E are the replaceable spindle shafts, in order to use a very large range of mills with diameter up to 22mm.

TECHNICAL DATA

Net weight: kg 480

Pneumatic pressure: 6 bar

Spindle power: kW 5

Power supply: 400 V 50 Hz

Dimensions: mm 700 x 950 x 1500 h
