T32EL – T56EL – T80EL

INSOLES

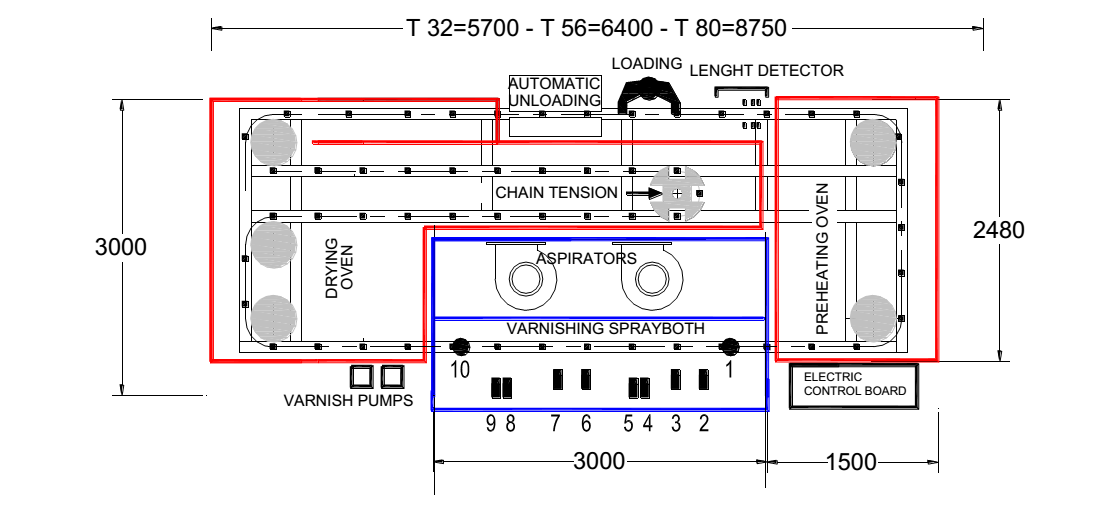

AUTOMATIC LINEAR SPRAYING MACHINE FOR SOLES: T32EL – T56EL – T80EL

FUNCTIONAL DESCRIPTION

Automatic spraying machine for soles.



MANUFACTURING FEATURES

preheating oven at forced warm air circulation

stainless steel spray both equipped with sprayguns aspirators and stainless steel water pump

drying oven at forced warm air circulation

cooling oven at forced room air circulation

automatic unloading of the painted units

pieceholder supports equipped with retractile needles

pneumatic pumps for sprayguns feeding

electronic control board plc Siemens

photoelectrical cells for the survey of the length and the presence of the particulars to be painted

TECHNICAL DATA

Installed power: kW 38/48/60

Air consumption: 2000/2500 NL/min.6/8 bar

No. of supports: 32/56/80

Production: up to 600/1400 p/h

Operators: 1
