X2 NT

SOLES

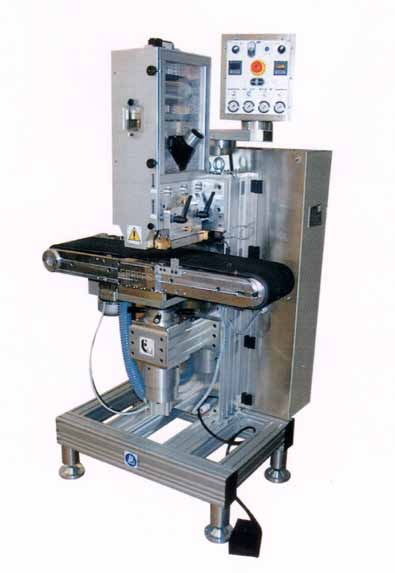

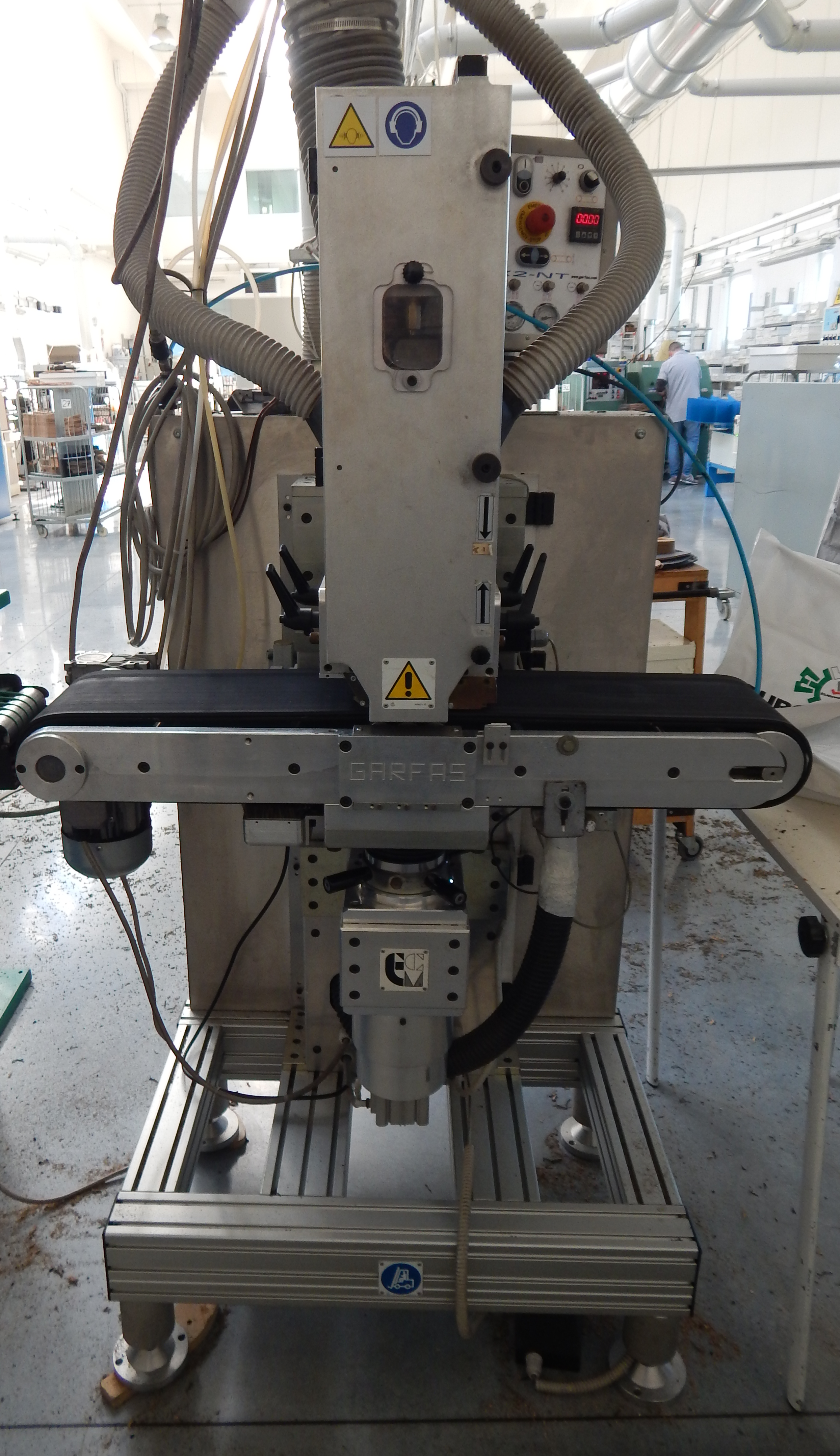

ROUGHING MACHINE: X2 NT

FUNCTIONAL DESCRIPTION

Exceptional operational flexibility a confirmation of its numerous operations possibilities. Multiple use of the X2 NT:

1- Scouring of leather soles on the flesh side

2- Scouring of leather soles for obtaining a “Scratched or Aged effect” on the grain side

3- Partial scouring of the surface of soles and various components using the programmable feed inversion device, E.G. to set up heel seat, heel breast chamfering, etc

4- Skiving of leather soles on the grain side

5- Skiving of leather heel covers

6- Scouring of leather counters for super finishing operations with a profile mould

7- Scouring of rubber soles, PU, Eva, both flat and with differentiated thicknesses up to 7 mm

8- Scouring of heel tips, midsoles, etc., in rubber

9- Scouring and skiving of leather uppers

10- Scouring of bands and/or strips in very supple rubber, taking full advantage of the feed inversion pedal control Any material which requires scouring from 0.5 to 30 mm in thickness and 200 mm in width can be processed with a variable feed from 0 to 26 meters/minute

CUSTOMIZATION: thanks to its easy handling and range of connecting devices (on request), the X2-NT can be inserted in automatic production lines in just a few minutes.

TECHNICAL DATA

Roughing height: 0 - 30 mm

Max roughing width: mm 200

Roughing power: kW 3

Net weight: kg 300

Dimensions: mm 960 x 850 x 1700 h
