X2 NT 2

SOLES

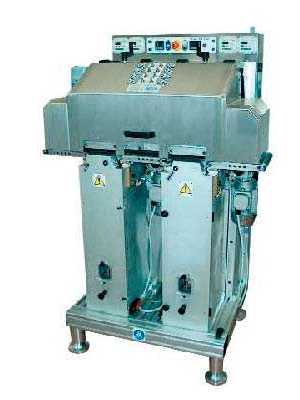

BUFFING MACHINE WITH 2 TAPES: X2 NT 2

FUNCTIONAL DESCRIPTION

It represents the maximum technological expression dedicated to the BUFFING of leather soles. It is suitable for all the soles factories that wish to get the BEST results. The machine has been designed for the buffing of leather soles, but thanks to the use of standard components of our scouring machines, can be utilized to rough flat rubber soles, tunit and various materials.

X2-NT 2 designed and realized following up-to-date technological concepts, offers:

- Ruggedness and accuracy beyond comparison

- Supporting structure realized totally by aluminium extruded profiles of most high technological level

- Flexibility, modularity, reliability

- Best ergonomic solution for work station

-  Single use or inserted in automatic lines

- Operative safety

- Noise minor of 78DbA

- Dust extractors pipes integrated in the structure

- Machine functions totally controlled through PLC and software dedicated

- Minimum maintenance

- Digital visualization of buffing work thickness

- Buffing pressure adjustable pneumatically

- Pneumatic compensation of the different thickness

- Adjustable work feed 0 ÷ 40 mt/min

- Double transport of soles: upper and lower

- Automatic oscillation of sandpapers

- Sand papers with pneumatic stretch

- OPTIONAL:  Speed of sand belts adjustable electronically

TECHNICAL DATA

Buffing height: 0 - 75 mm

Max buffing width: mm 200

Buffing power: kW 2.2 x 2

Net weight: kg 550

Dimensions: mm 1050 x 900 x 1510 h
