X3-VP

SOLES

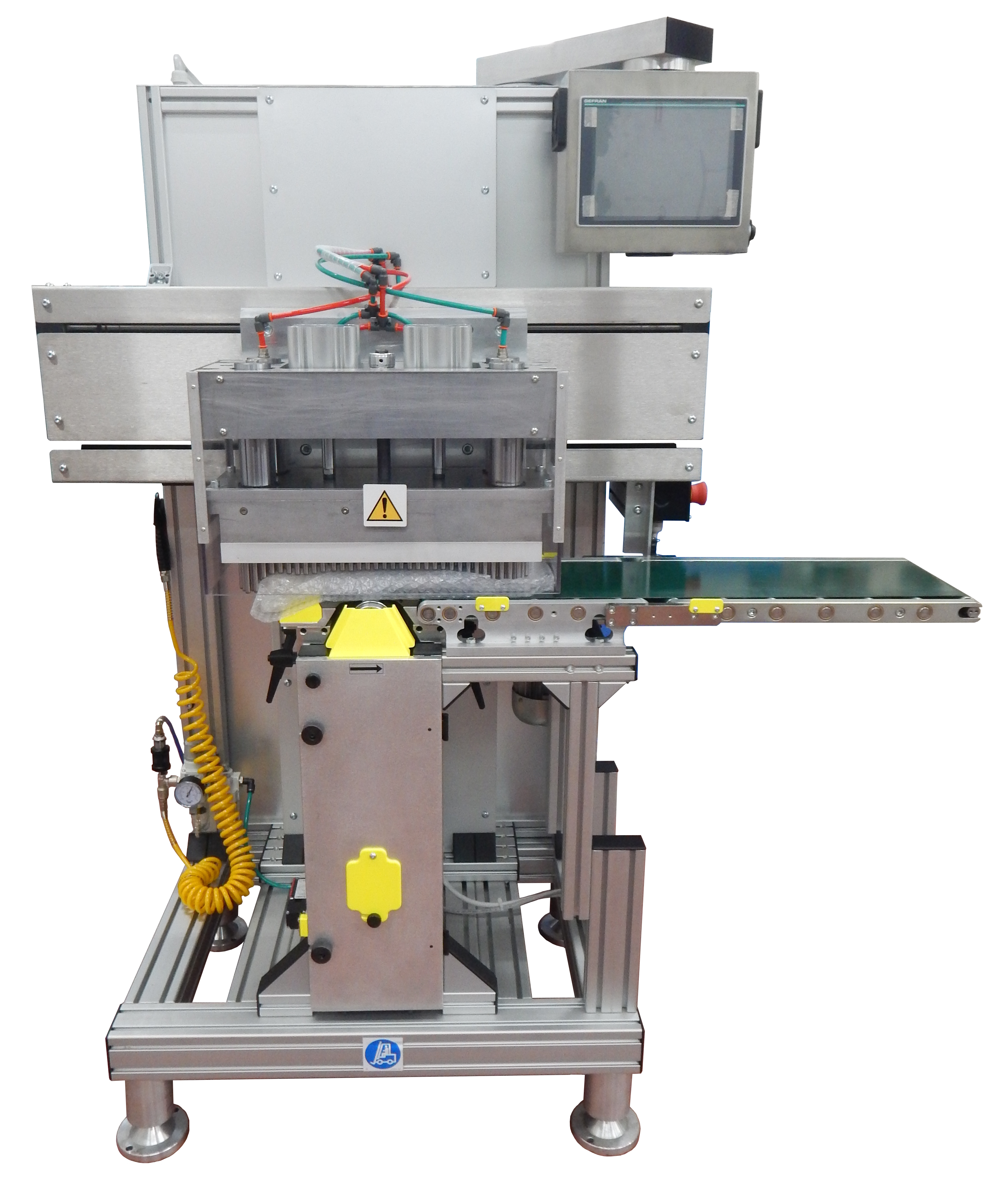

ROUGHING MACHINE: X3-VP

FUNCTIONAL DESCRIPTION

UNIVERSAL ROUGHING MACHINE W. 200 mm

Represents the highest technology dedicated to roughing rubber soles with different thicknesses. It is proposed that all the sole makers who want to get the ULTIMATE in soles roughing. The X3-VP, designed and built according to modern technological concepts, provides:

• Robustness and accuracy unparalleled;
• Supporting structure made entirely of extruded aluminum profiles with the highest level of technology;
• Flexibility, modularity, reliability;
• Good ergonomics of the workplace;
• Using single or automatic lines;
• Operational Safety;
• Noise min of 75dBA;
• Funnels for the suction integrated into the structure;
• Total government machine functions via HMIColorTouch Screen 10,4”+ PLC and software Garfas;
• Multi-languages software;
• The machine born for roughing of rubber soles with different thicknesses. Thanks to the combined use of pneumatic solutions, electronic and software, provides exceptional adequate operational flexibility to the countless types of modern materials and design soles;
• Low maintenance.

SPECIFICATIONS

Working height 3 ÷70 mm
Max working width 200 mm
Roughing power 5,5 HP ( 4 kW )
Roughing pressure buffing pneumatically adjustable
Pneumatic compensation thickness differences 42 mm
Working speed adjustable 0÷15 mt/1
Grinding belt RPM, adjustable 0÷4000 rpm
Semi-automatic loader soles
Grinding belts with pneumatic tensioning
Output capacity / hour 150/200 pairs
Work parameters storable by recipes
Remote control in local network in accordance to the
Industry 4.0

TECHNICAL DATA

Dimensions: mm 1380 x 920 x 1.700 h
Net weight: kg 350
