B71N

SOLES

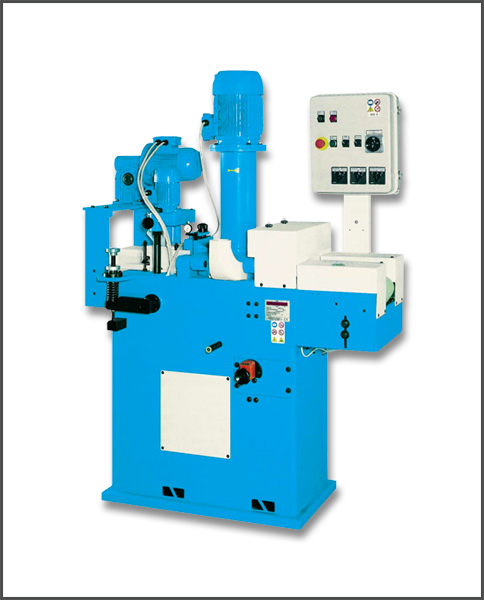

LEVELLING MACHINE: B71N

FUNCTIONAL DESCRIPTION

This machine levels and roughs flat leather and tunit soles. The products which undergo this processing acquire a very high level of precision of thickness, with a maximum tolerance of 0.05 mm on the entire surface. The even finishing puts that sole in excellent conditions for further processing steps, such as cementing. It may be inserted in a line with other machines. (Different voltages and frequencies on request).

TECHNICAL DATA

Net weight: kg 550

Installed power: 5 Kw

Overall dimensions: mm 1380 x 680 x 1870

Electric supply: 230 / 400 volt 50 Hz
