E80

SOLES

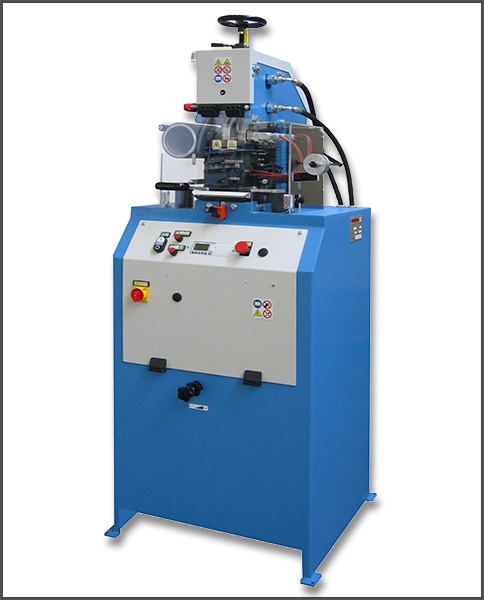

MARKING MACHINE: E80

FUNCTIONAL DESCRIPTION

This machine stamps the "flower side" of leather and tunit leather shoe soles with numbers and "Real Leather" markings. Its special design renders it particularly easy to use, above all for adjusting the sole's alignment in relation to the positions of the markings. The stamping action is performed by a hydraulic system (max. 10 Ton), which allows for the same marking depth to be obtained for each sole, regardless of its thickness. The machine is equipped with an electronic system for monitoring the die temperatures and the pause times for changing the colour ribbons. The soles must be inserted and removed manually.

TECHNICAL DATA

Net weight: kg 350

Installed power: kW 3.5

Overall dimensions: mm 640 x 630 x 1800

Power supply: 400 Volt 50 Hz

(Different voltages and frequencies on request)
