SB115

SOLES

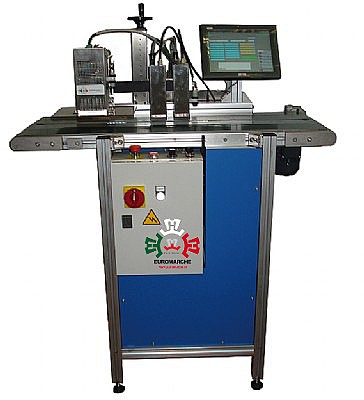

MARKING MACHINE (BLACK AND WHITE): SB115

FUNCTIONAL DESCRIPTION

Electronic inkjet system printer for absorbent and synthetic materials (rubber, TPU, TR, etc.) with two different printing colors (black and white), with rapid selection. The machine is composed by two heads, which contain the ink, and the selection of the printing color is carried out through a selection knob, making this operation quick and appropriate for inline implementation. The pc controls the machine and the heads, through the monitoring of the characteristic parameters, and the text editor is very user friendly, allowing to create writings in italic, bold, rotated, but also to insert logos, images, forms and data that update automatically. The machine is equipped with transport belt and speed variator.

TECHNICAL DATA

Installed power: kW 0.18

Power supply: 230/400 V 50 Hz

Dimensions: mm 1110 x 710 x 1350 h
