occhiellatrice 96.E.10.C

INSOLES

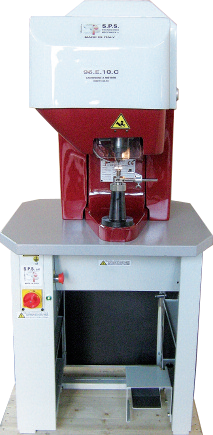

RIVETING MACHINE (MANUAL): 96.E.10.C

FUNCTIONAL DESCRIPTION

Electric motor eyeletting machine to apply shank on inner sole. Machine is provided with feeder to apply automatically auto-perforating eyelets art. C2-C3 and others, suitable to fix steel foils on the shoe inner sole. Machine presents the shank always inserted on the spindle to facilitate to hit the centre of hole on steel foils. Machine’s starter is borned by a click with disengagement, controlled by treadle. For sole’s position machine is provided with a special guide. The sound pressure level: LpA – DB (A) 82 – Lpc lower 130 dB (c) The sound pressure level at the operator’s work place. Machine on work position. Our motor machines are in conformity with accident precaution’s rules as provided with wrapping guard and finger expelled system.

TECHNICAL DATA

Net weight: kg 125

Insertion speed per minute: 150

Motor power: HP 0.50

Absorbed power: kW 0.37

Dimensions: mm 720 x 520 x 1480 h

Air consumption: 200 Nl/min

Net weight: 420 Kg
