A33

INSOLES

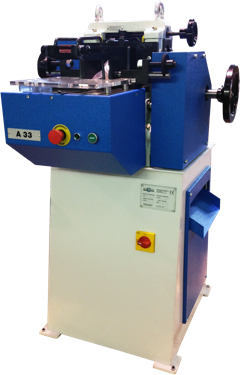

SKIVING MACHINE (SEMI-AUTOMATIC): A33

FUNCTIONAL DESCRIPTION

Automatic heel seat lining skiving machine.  When mounted with a matrix-roller shaped according to the heel seat lining, this machine will level the linings to the shape required.

TECHNICAL DATA

Motor power: HP 1.5

Power required: kW 1.20

Production: 18.000 pairs/ 8 hours

Net weight: kg 300

Dimensions: mm 1360 x 800 x 1400 h
