AL51

SOLES

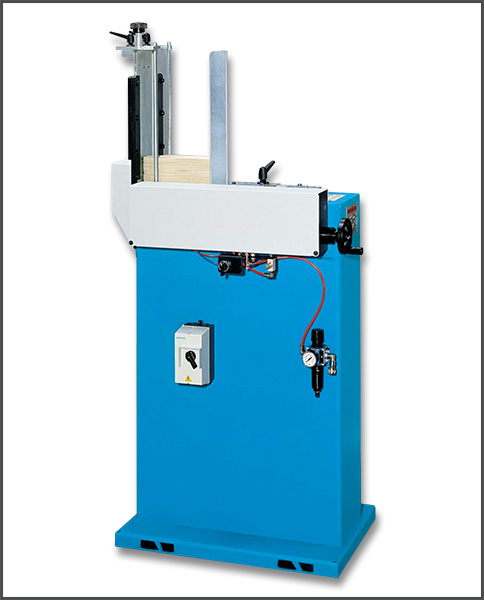

STACKER: AL51

FUNCTIONAL DESCRIPTION

Automatic feeder with loading of the sole magazine from above and ejection of the sole by means of a pusher which ejects the last sole on the bottom of the pack. Ejection rate can be set pneumatically in order to adapt the rhythm to the following machines. Conveyed by means of two rubber rollers connected to a reduction gear motor.

TECHNICAL DATA

Machine weight: Kg145

Installed power: 0,185 Kw

Overall dimensions: mm 790 x 415 x 150 h

Electric feeding: 230/400 Volt 50 Hz
