T77

SOLES

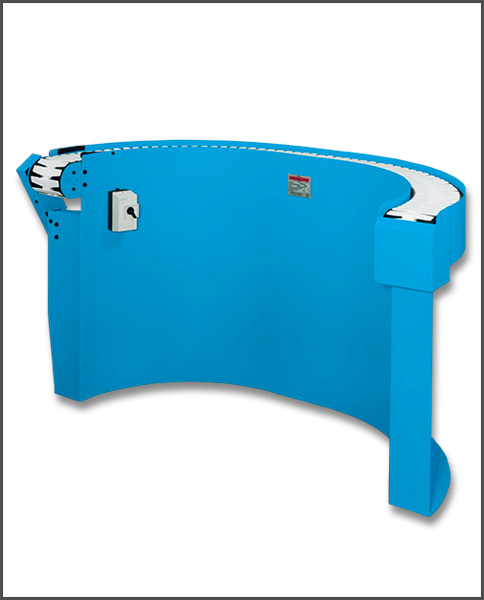

CURVILINEAR BELT: T77

FUNCTIONAL DESCRIPTION

The T77 belt, constructed with avant-garde technology, conveys shoe soles from one work unit to another. Semi-circular support structure in steel plate. PVC conveyor belt with practically unlimited life. Extremely safe, silent operation Speed can be synchronized with of downstream machine for translation of 1500 pairs of soles/hour max. Insert of this machine in lines with other machines having outdated loading and unloading zones reduces down times by eliminating unnecessary operator movement. This machine is particularly useful when the production line is composed of several machines performing a variety of operations.

TECHNICAL DATA

Net weight: 152 Kg

Installed power: 0,18 Kw

Overall dimension: mm 1780 x 870 x 980 h

Electric supply: 230 / 400 Volt 50 Hz 3 phases
