CGC Z11-Z11Q

INSOLES

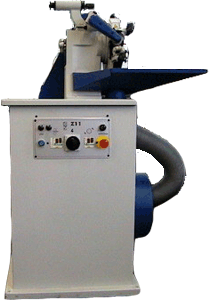

MILLING MACHINE: Z11 – Z11Q

FUNCTIONAL DESCRIPTION

The INSOLES MILLING MACHINE MOD.Z-11 is a machine designed and built to execute the operations of milling for round insoles for men and women. The milling operations are carried out through a milling disk, moved through a belt by an electric motor which supplies the aspirator, equipped with cutting knives which, by rotating, can remove material from the working insole; the insole moving during the milling operations occurs instead through two carriers, one in neutral and one motorized. The machine is equipped with a speed variator which allows to increase or decrease the output. Available also the Z-11Q version for square insoles, equipped also with a photocell which, by reading the presence of insoles, manages the movement speed.

TECHNICAL DATA

Net weight: kg 150

Hourly production: 5000/6000 pairs

Motor power: HP 1.5

Dimensions: mm 950 x 600 x 1450 h
