Comec A/17

COUNTERS

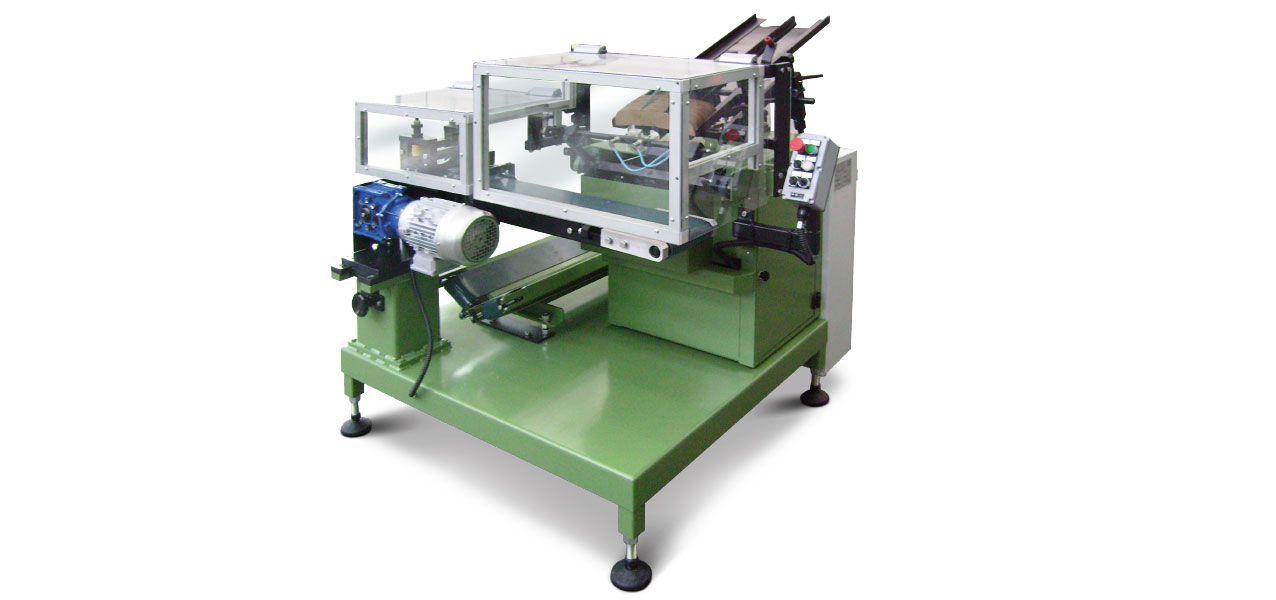

PRE-MOULDING MACHINE: A17

FUNCTIONAL DESCRIPTION

The PRE-MOULDING MACHINE mod. A/17 is a machine for the automatic pre-moulding of the counters. In fact a constantly feeding table forms it were counters are loaded. Then the counters are picked up one by one and laid down on a belt, which conveys them to the rolling unit, which has been previously warmed up properly by means of a thermoregulator. Once the rolling process is over the counters are laid down on a receiving belt orderly.

TECHNICAL DATA

Dimensions: mm 1720 x 1510 x 1420 h

Max absorbed power: kW 3

Maximum hourly output: 4500 pars

Supplied Voltage: 230/400 V

Air consumption: 120 Nl/min

Net weight: kg 2000
