COMEC A6

COUNTERS

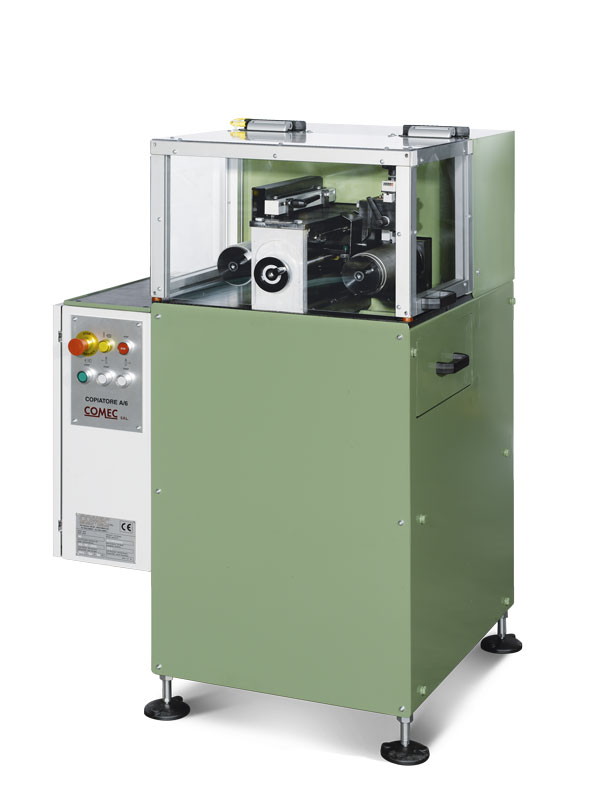

COPYING MACHINE: A/6

FUNCTIONAL DESCRIPTION

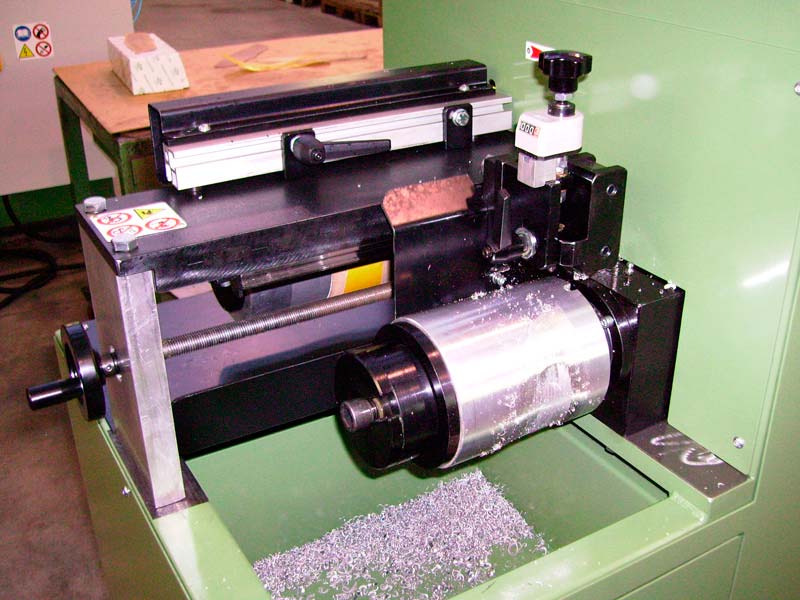

The COPYING MACHINE mod.A/6 has been studied and realized for the production of the aluminium or other materials skiving rollers to be used in our skiving machines for counters or also made by other firms. The machine is composed by two shafts where it is placed on the left-side the sample-roller and on the right-side that one to work. The operator must only, previously, prepare the roller with the counter sample glued by means of a double-side adhesive tape. A special tool effects the copying work from backwards to forwards. The machine is made according to CE instructions.

TECHNICAL DATA

Dimensions: mm 930 x 900 x 1350 h

Supplied voltage: 230/400 V

Max asbsorbed power: 0,8 Kw

Diameter of the matrix: 120 mm

Net weight: kg 280
