Comec SP99

INSOLES

MOULDING MACHINE: SP99

FUNCTIONAL DESCRIPTION

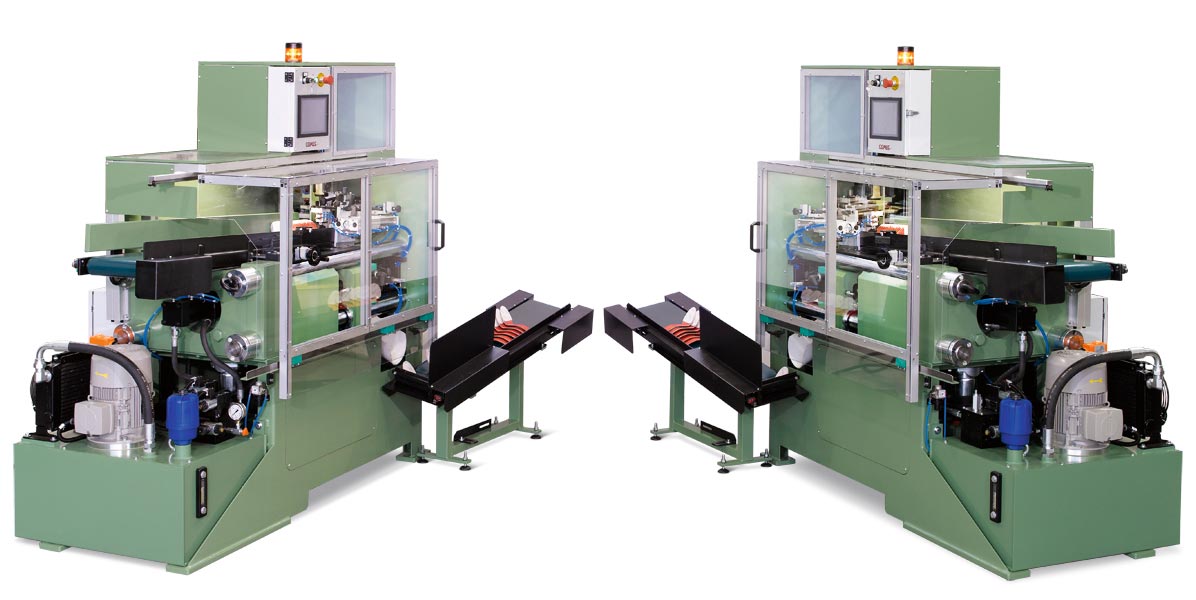

The MOULDING MACHINE mod.SP/99 is a group of two machines for the completely automatic moulding of every kind of insole and sole in fiber material. This allows an easier adjustment of the machine and a fast change of the mould. The machine is also equipped with a program to store the articles already made as to only restore them when it is necessary. The special movement of the mould allows a fast production with the maximum precision using the normal moulds. The machine is special right for the moulding of the high heel insoles. The press, which is at high power, is supported by 4 (four) horizontal columns. The machine is made according to CE instructions.

TECHNICAL DATA

Pressing power adjustable up to: 40* t

Max hourly output for two machines: 1.140 pairs/hour

Supplied Voltage: 230/400 V

Absorbed Power: kW 4* max

Air consumption: 150* Nl/min

Hydraulic circuit tank capacity: 100* lt

Overall weight (with oil): kg 1.700*

*EACH MACHINE
