HL100

HEELS

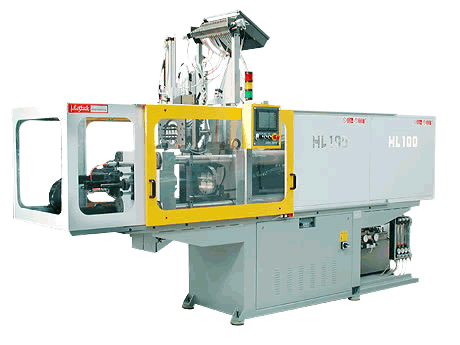

MOULDING MACHINE FOR COMPACT THEROMPLASTIC COMPONENTS: HL100

FUNCTIONAL DESCRIPTION

- fully automatic cycle

- press clamping power = KN 1000

- 4 columns

- adjustable opening-closing machine plates for different moulds height

- proportional hydraulic valves

- hydraulic ejector

- electronic control board managed by PLC, display with TOUCH SCREEN mode

  Optionals for heels:

* direct injection with 2 self-regulating nozzles head

* bolster with movable jaws (movement by pneumatic pistons), two housing cavities Ø mm. 127 or 135 or 140 each

* automatic metal tubes loader

* trasformation in movable loader with additional ejector

* cooling tank

Optionals for top-pieces:

* central injection with round bolster Ø mm. 238 and special valve nozzle suitable for injection of TPU

* automatic loader for insertion of nails into the mould (capacity to load from 1 for stiletto-heel up to 5 nails into each top-piece mould cavity)

Other optionals:

* bolster for high-heeled units/soles * mould-protector device



TECHNICAL DATA

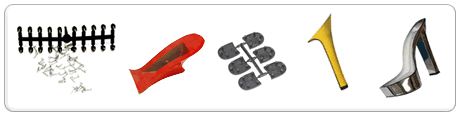

Production:

* heels 150/180 pairs-h

* heels with metal tubes 120/150 pairs-h

* wedges 100/120 pairs-h

* all-plastic top-pieces 2 injections-min

* top-pieces with metal nails automatically loaded into the mould 2 injections-min

* plateaux, high-heeled units, rigid unit soles, soles 60/120 pairs-h

Injection screw: Ø mm. 42

Basis weight: gr. 300

Heel mould dimensions: Ø mm. 127-135-140/H 140-180

Distance between columns: mm. 475 (horizontal)x305 (vertical)

Dimensions: mm 4100 x 1150 x 2050 h
