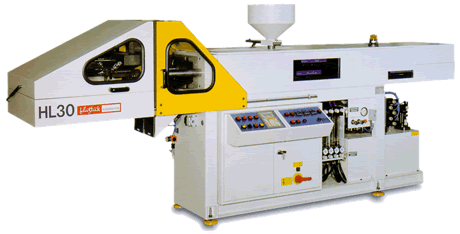

HL30

HEELS

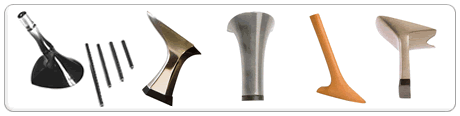

INJECTION IN PAIR OF HEELS AND WEDGES: HL30

FUNCTIONAL DESCRIPTION

- fully automatic cycle

- direct injection with 2 self-regulating nozzles head

- adjustable opening-closing machine plates for differents mould height

- hydraulic ejector

- electronic control board managed by PLC

- "CE" safety devices for worker



optionals:

* fixed bolster for heels, two housing cavities Ø mm. 127 each

* bolster for heels with movable jaws, two housing cavities Ømm. 127 each

* automatic metal tubes loader

* transformation in movable loader with additional ejector

* cooling tank for heels

TECHNICAL DATA

Production:

* heels 150/180 pairs-h

* heels with metal tubes 120/150 pairs-h

* wedges 100/120 pairs-h

Injection screw: Ø mm. 42/60

Basis weight: gr. 180/300

Mould dimensions: Ø mm. 127/H 140

Machine dimensions: mm 3760 x 925 x 1650 h
