HL30\R

HEELS

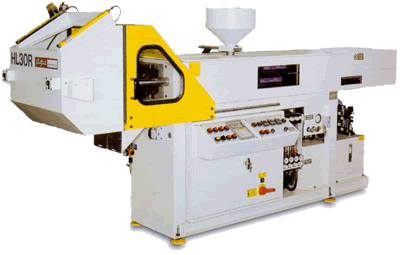

INJECTION IN PAIR OF HEELS AND WEDGES: HL30/R

FUNCTIONAL DESCRIPTION

- direct injection with 2 self-regulating nozzles head

- hydraulic ejector

- electronic control board managed by PLC

- "CE" safety devices for worker

Optionals:

* fixed bolster for heels, two housing cavities Ø mm. 127 each

* bolster for heels with movable jaws (movement by pneumatic pistons), two housing cavities Ø mm. 127 each

* cooling tank for heels

TECHNICAL DATA

Production:

* heels (fully automatic cycle) 150/180 pairs-h

* heels with metal tubes inserted by hand (semi-automatic cycle) 120/150 pairs-h

* heels with genuine leather sheet inserted by hand (semi-automatic cycle) 60/80 pairs-h

* wedges 100/120 pairs-h

Injection screw: Ø mm. 42/60

Basis weight: gr. 180/300

Mould dimensions: Ø mm. 127/H 140

Machine dimensions: mm. 3380 x 925 x 1650 h
