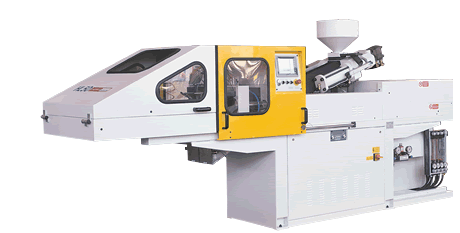

MOULDING MACHINE FOR COMPACT THEROMPLASTIC COMPONENTS: HL50

FUNCTIONAL DESCRIPTION

fully automatic cycle

press clamping power = KN 500

direct injection with 2 self-regulating nozzles head

adjustable opening-closing machine plates for different mould height hydraulic ejector

electronic control board managed by PLC, display with TOUCH SCREEN mode "CE" safety devices for worker



Optionals:

* fixed bolster for heels, two housing cavities Ø mm. 127 each

* bolster with movable jaws (movement by pneumatic pistons), two housing cavities Ø mm. 127 or 135 or 140 each

* automatic metal tubes loader

* transformation in movable loader with additional ejector

* central injection with round bolster Ø mm. 238 and special valve nozzle suitable for injection of TPU

* bolster for high-heeled units/flat-soles

* mould-protector device

* cooling tank for heels

TECHNICAL DATA

Production:

* heels 150/180 pairs-h

* heels with metal tubes 120/150 pairs-h

* wedges 100/120 pairs-h

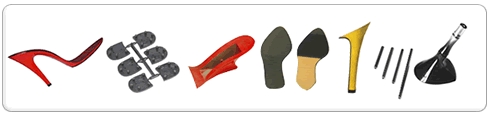

* all-plastic top-pieces 2 injections-min

* plateaux, high-heeled units, rigid unit soles, soles 60/120 pairs-h

Injection screw: Ø mm. 42

Basis weight: gr. 300

Heel mould dimensions: Ø mm. 127-135-140/H 140-180

Max bolster dimensions: mm. 358x370

Dimensions: mm 4080 x 1000 x 1750 h
