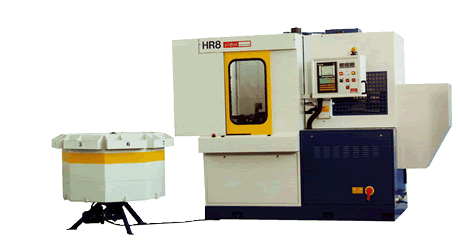

HR8

HEELS

INJECTION OF HEELS AND WEDGES WITH GENUINE LEATHER SHEET INSERTED BY HAND INTO THE MOULD; A.B.S. INSERTS WITH STEEL SHANK: HR8

FUNCTIONAL DESCRIPTION

- the "rotary table unit" + "mould-frame closing pistons" works without hydraulic distributor

- LOW MAINTENANCE AND OPERATING COSTS

- the practical mould-frame opening system (vertical movement combined with horizontal translation) allows to easily load every kind of insert

- eight stations rotary table

- collecting carousel

- electronic control board managed by PLC, display with TOUCH SCREEN mode

- automatic sprue ejector

- "CE" safety devices for worker

TECHNICAL DATA

Production:

* heels 150/180 pairs-h

* heels with metal tubes 120/150 pairs-h

* wedges 100/120 pairs-h

* all-plastic top-pieces 2 injections-min

* top-pieces with metal nails automatically loaded into the mould 2 injections-min

* plateaux, high-heeled units, rigid unit soles, soles 60/120 pairs-h



Injection screw: Ø mm. 42

Basis weight: gr. 300

Heel mould dimensions: Ø mm. 127-135-140/H 140-180

Distance between columns: mm. 475 (horizontal)x305 (vertical)

Dimensions: mm 4100 x 1150 x 2050 h
