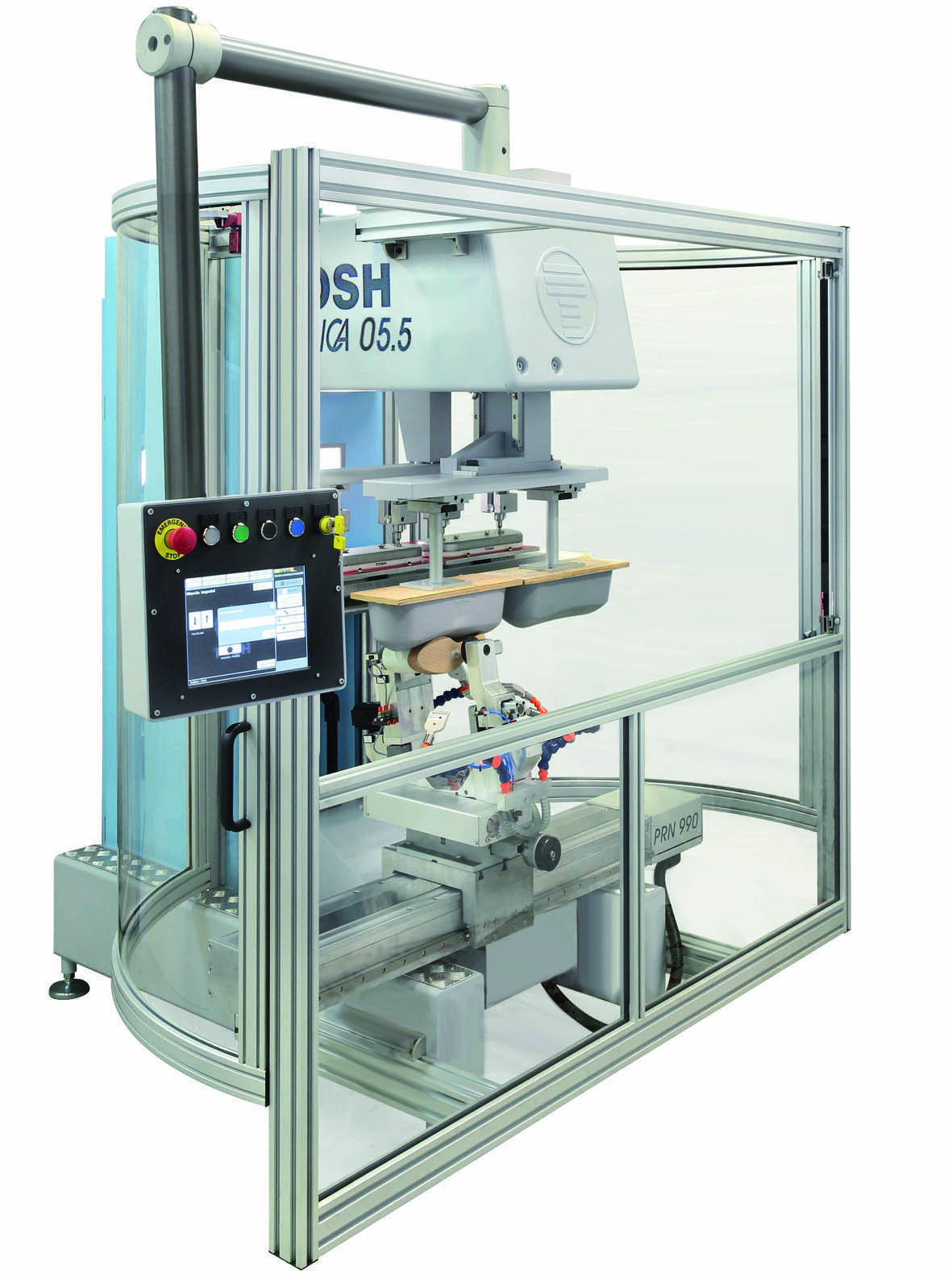

PPAD PRINTING CENTER FOR MULTICOLOUR PRINTING: LOGICA 05.5

FUNCTIONAL DESCRIPTION

Numerically controlled pad printing centre for multicolour printing. Up to 6 movement axis easily programming. Fully electrical operation. Available in 3 versions different for printing force.



All the mechanical movements are motorized via numerical control and lead screw, guarantee high precision and smooth working.

Manufactured from light alloy and special steel. The simple and robust construction was also conceived to guarantee a long life of working without maintenance.

The computerized numerical control ensures complete flexibility of operation and simplicity without compromise.

Setting up adjustments can be carried out via the numeric keyboard with alphanumeric display. Ability to freely position the keyboard, where most comfortable for the user.

Memory of all different work programs for easy changeover set up.

Automatic colours registering on x y r axes, for immediate start-up (optional).

Ability to print under the printing plate, allowing decoration in every position on the large sized objects.

Ability to print on different surface levels of the same object, adjusting easily the stroke through the keyboard.

Low power consumption, economical since compressed air is not required. It’s exclusive electric operation presents a considerable advantage compared to an equivalent pneumatic machine, a saving of more than 15.000 - 20.000 kw/h in a year can be achieved assuming one working shift per day.

Eco-friendly. Due to its available hermetic ink system preventing solvent evaporation.

Changeover time reduced to a few minutes, thanks to the considerations given in the design concept to apply ergonomic principles to the system.

Ergonomic design to easy access all mechanical parts.

Accurate movement of the support slide-table with adjustable height.

TECHNICAL DATA

Operation: electric with numerical control

Printing force mod. Logica 05.5 and 05.5 SV: 4000 N

Printing force mod. Logica 05.5 S: 5000 N

Maximum printing speed mod. LOGICA 05.5 and 05.5 S: adjustable up to 1200 c/h (*)

Maximum printing speed mod. LOGICA 05.5 and 05.5 SV: adjustable up to 1700 c/h (*)

Number of colours: 1 - 2 - 3 - 4 - 5 - 6

Maximum dia. ink cup: 160 mm LOGICA 05.5, 195 mm LOGICA 05.5 S and 05.5 SV

X axes pad register: +/- 20 mm

Vertical stroke: 180 mm

Maximum pad height: 220 mm

AC supply: 380 V - triple phase - 50/60 Hz

Average consumption: about 1500 W

Weight with indexer and safety guarding: about 1300 kg

Sizes with indexer and safety guarding: about 2550 x 1600 x 2250 (h) mm
