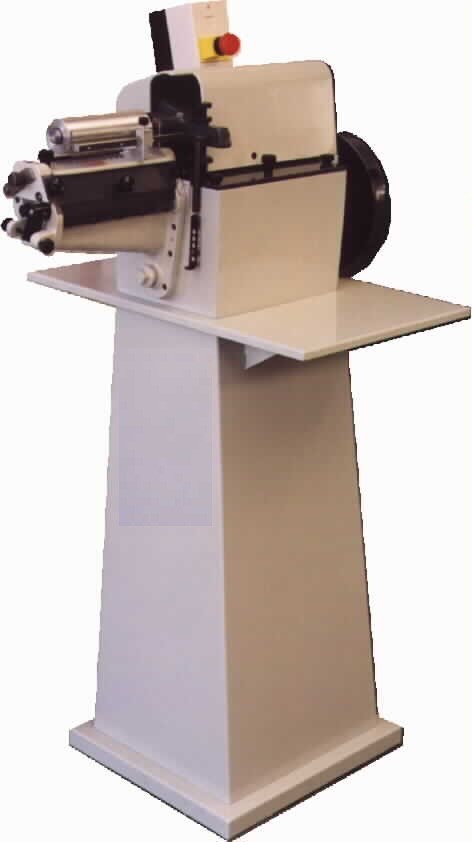

CEMENTING MACHINE: MAV 3150

FUNCTIONAL DESCRIPTION

Cementing machine MAV 3150 is suited to glue every type of sole also with different thickness and with high heels already applied. The conveyor roll, with bayonet coupling, can be extracted with facility. Also the extraction of the soft smearing roll is easy and can be substituted with a brush roll for the glue smearing in the shank with steel foil in the insole department. The machine can be furnished with only head with three phase engine in various voltages.

TECHNICAL DATA

Net weight: kg 70

Useful cementing width: mm 150

Motor power: HP 0.33

Dimensions: mm 620 x 680 x 1180 h
