Comec R24

INSOLES

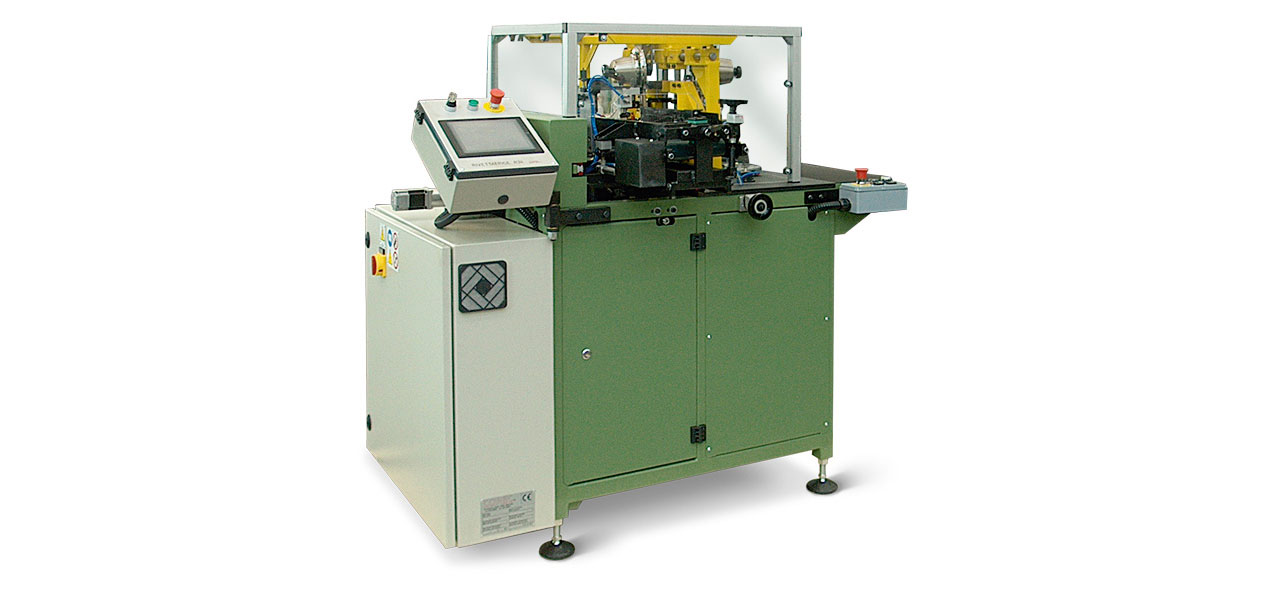

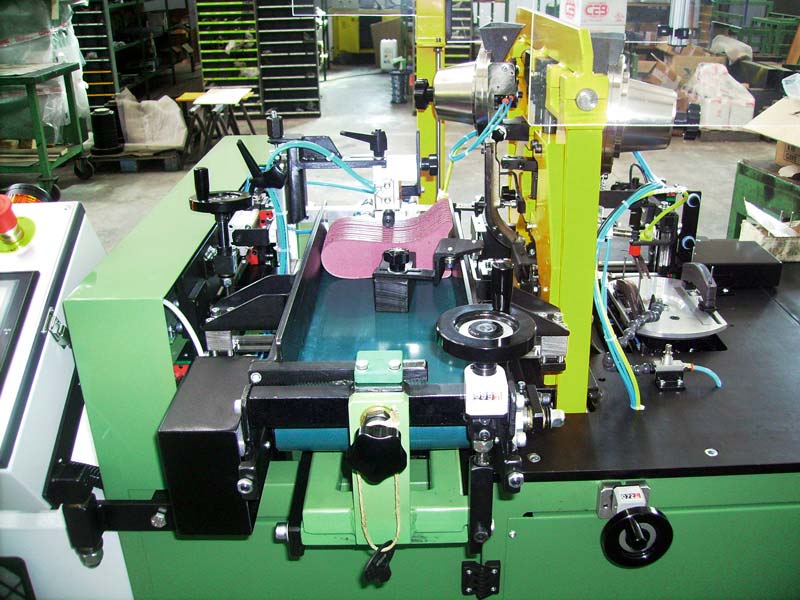

RIVETING MACHINE (AUTOMATIC): R24

FUNCTIONAL DESCRIPTION

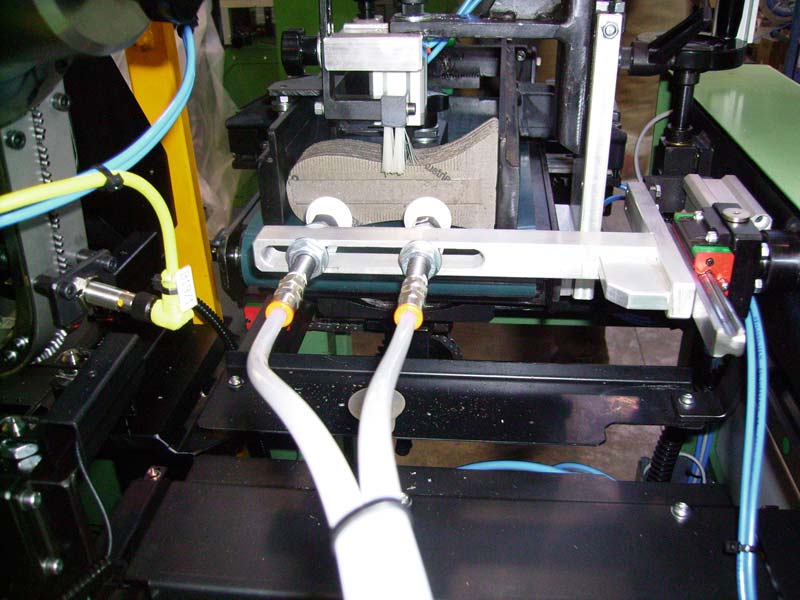

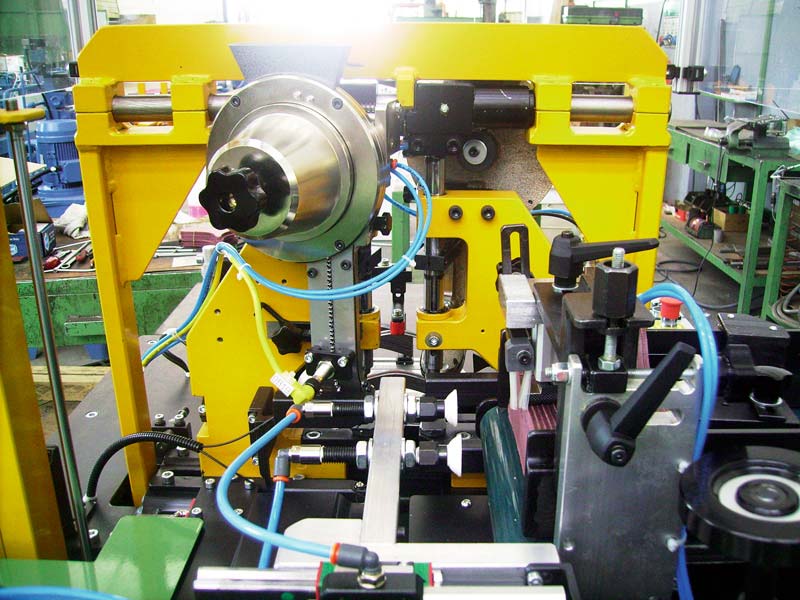

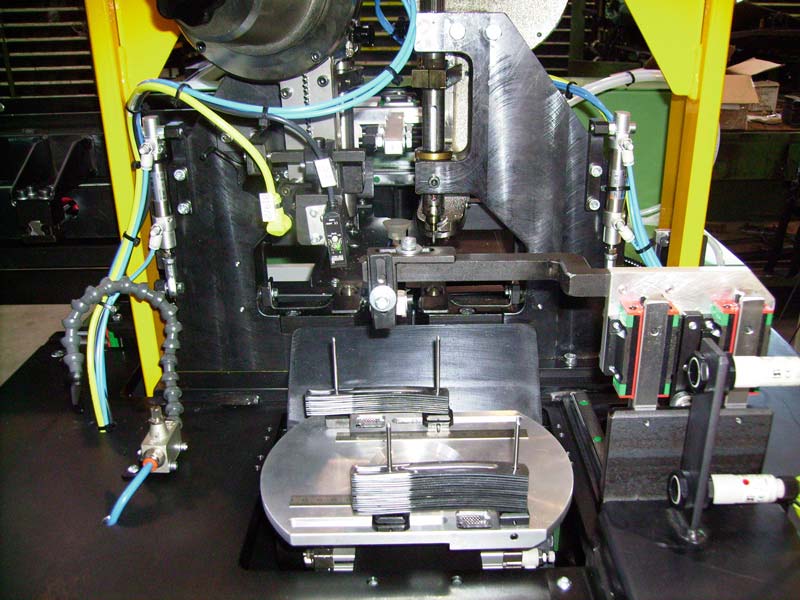

The RIVETING MACHINE mod. R/24 is a machine for the automatic attaching of the shank to the shank-board piece by contemporaneous application of two rivets or only one. The machine is very simple and easy to check by the operator. The first part is made by a feeding table with sucking-disks for the drawing. The second part is made by a sucking-disk and a “brushless” motor that provides to take the shank-board piece and to place it under the two riveting devices. This system can be programmed and stored. The shanks stock is made by a rotating table system that allows a continuous feeding by a fast and simple way. The exhaust of the shank-board piece joined with the shank is possible to make in two positions: shank in the upper part, suitable for a gluing by spraying device or shank in the lower part suitable for the gluing by roller device.

TECHNICAL DATA

Dimensions: mm 1630 x 1270 x 1480 h

Max hourly output: 800 pairs/hours

Supplied Voltage: 230/400 V

Absorbed Power: kW 1

Air consumption: 200 Nl/min

Net weight: 420 Kg
