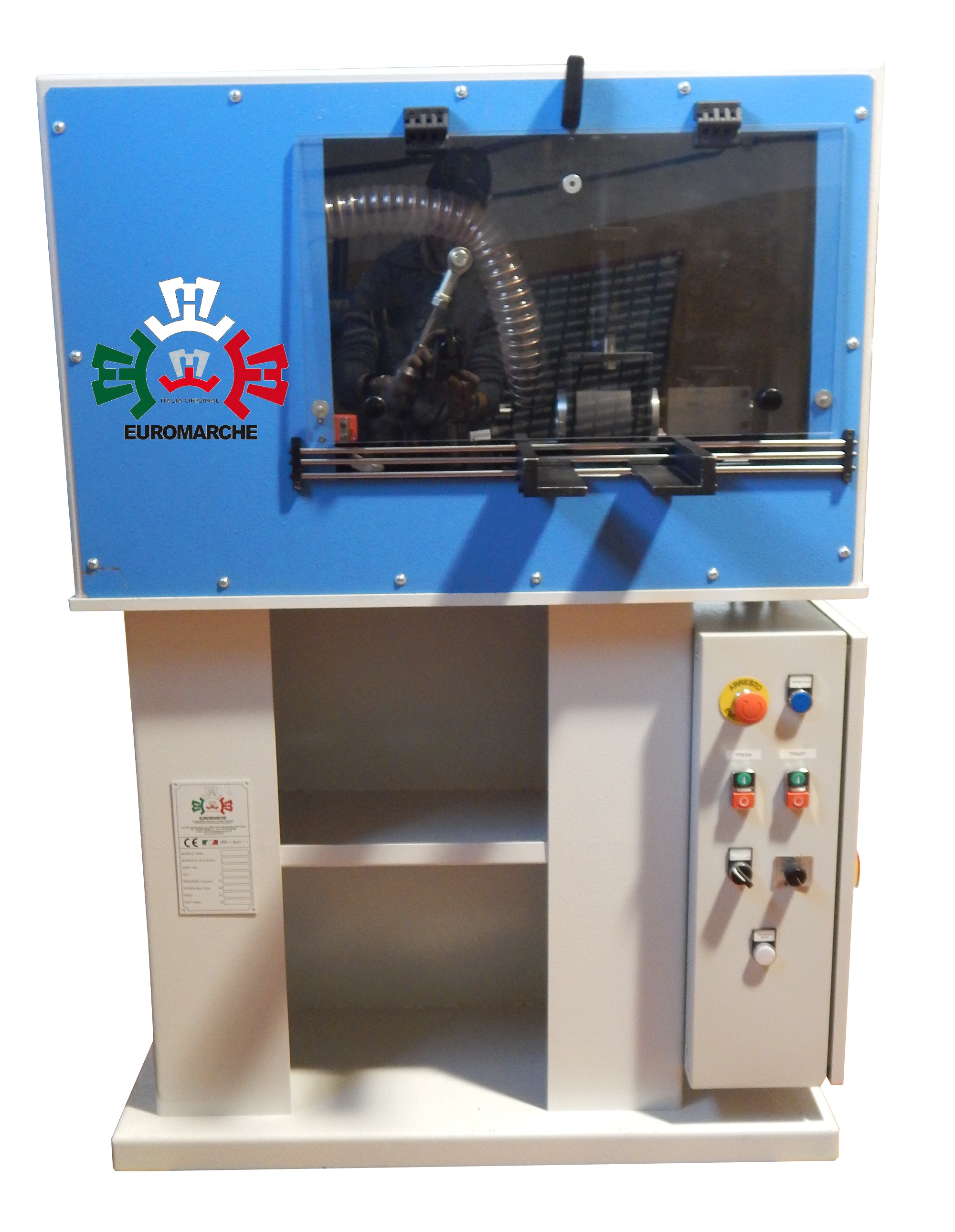

BEVELLING MACHINE OF CARDBOARD STRIPS: SCS

FUNCTIONAL DESCRIPTION

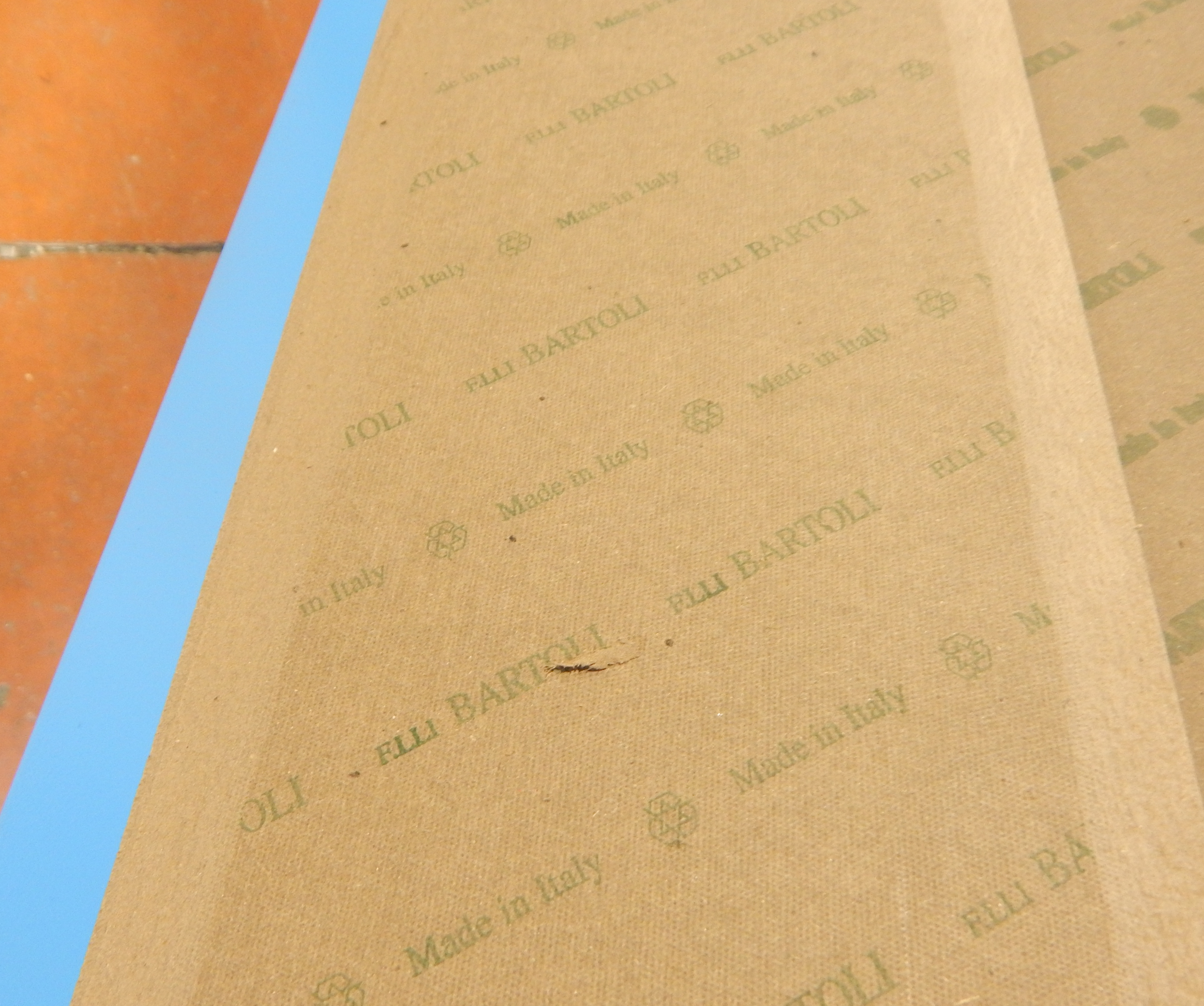

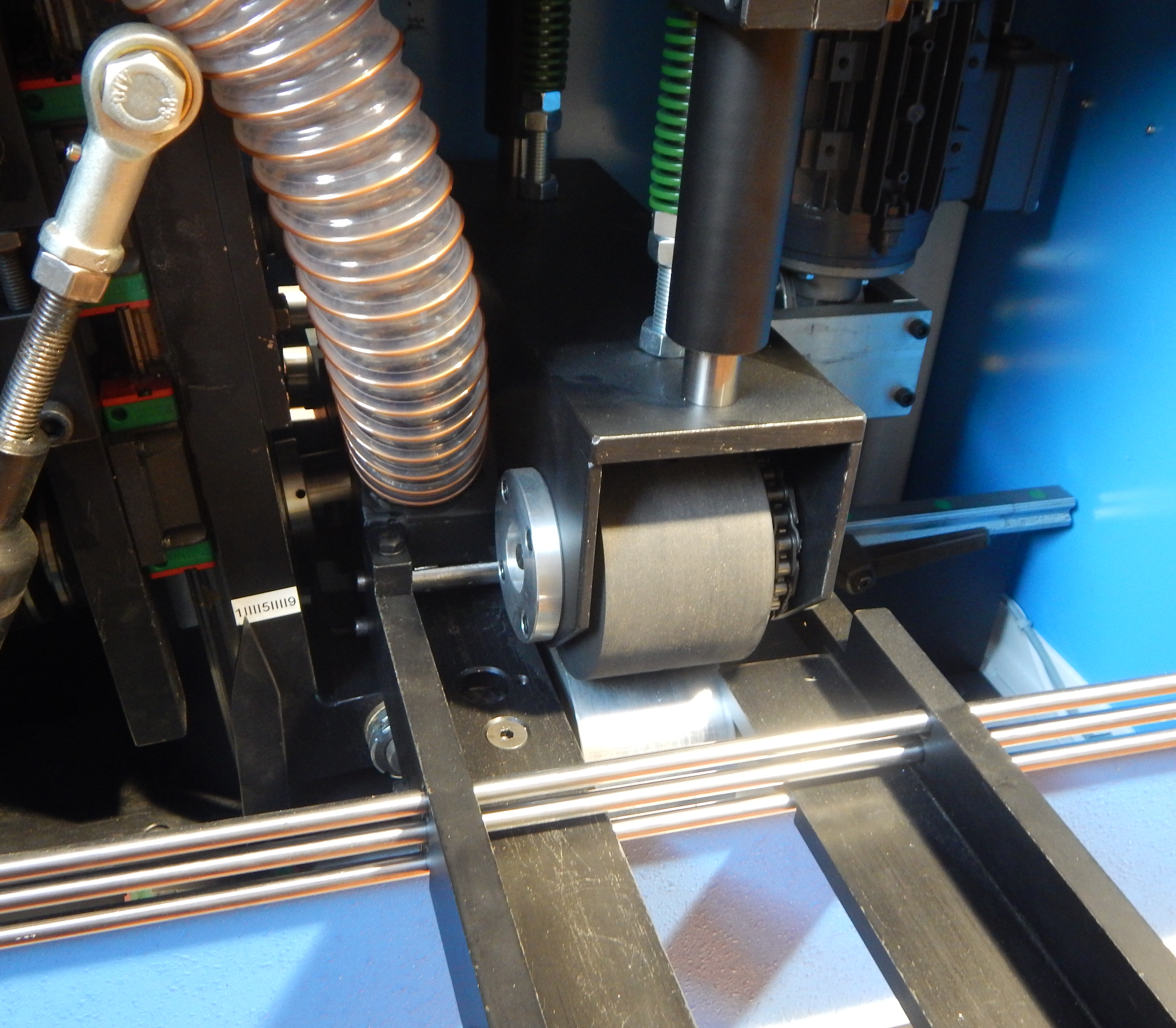

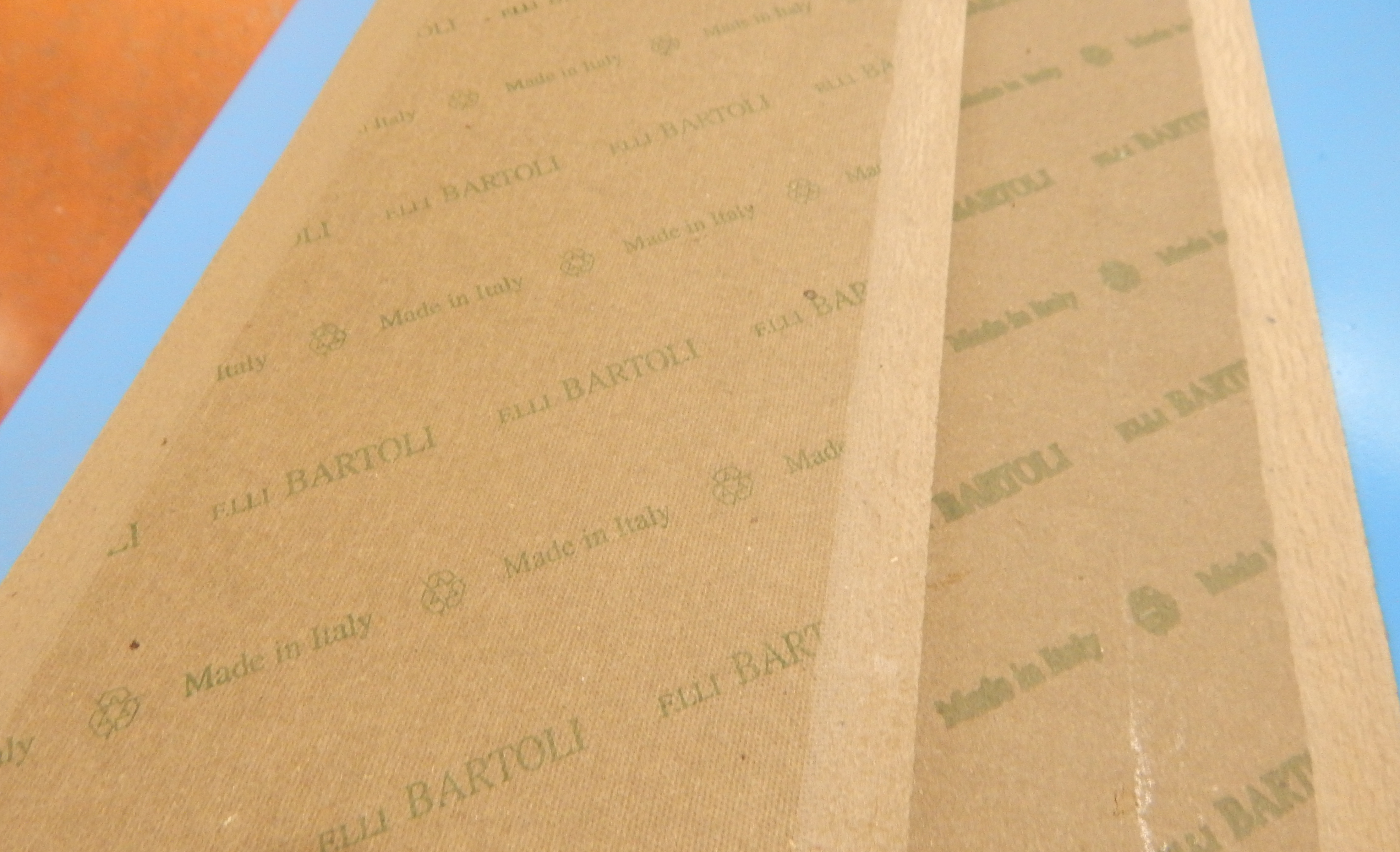

The bevelling machine has been designed to carry out the bevel on the edge of the rigid cardboard used in the preparation of coupled strips for the insoles production. The working takes place through a circular tool and the material towing is executed with speed electronic regulation. Bevelling inclination regulation between 3° - 12°. The machine works strips of length from 120 to 300 mm with maximum material thickness equal to 5 mm.

TECHNICAL DATA

Net weight: kg 250

Power absorption: kW 1.5

Dimensions: mm 1000 x 700 x 1550 h
